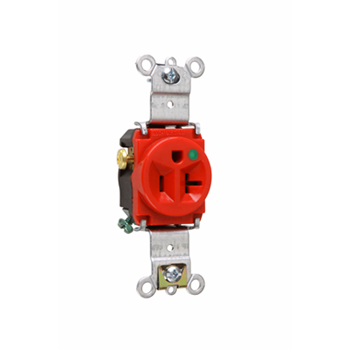

Pass & Seymour 8301-RED 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R Red Nylon Face Thermoplastic Back Body Single Receptacle

Features

• Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly.
• One-piece brass, triple-wipe power contacts for lasting retention.
• Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
• Impact-resistant nylon face and thermoplastic back body.
• Internal screw-pressure-plate back wire capable of accepting #14 – #10 AWG solid or stranded copper or copper-clad wire.
• Terminal compartments isolated from each other for positive conductor containment.
• Tri-drive terminal and mounting screws.
• Auto-ground clip assures positive ground.
• For covering patents, see www.legrand.us/patents.
• For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

General Info

• Color: Red
• Type: Single Receptacles
• Duty: Heavy Duty
• Special Features: Back,Side Wire

Listing Agencies/Third Party Certifications

• RoHS: Yes
• CSA Standard: Yes
• cUL Standard: Yes
• cURus: No
• Federal Spec: Yes
• UL Listing No: UL498
• UL Standard: Yes
• UN SPSC: 39121406
• UR: No

Dimensions

• Depth (US): 1.093"
• Height (US): 3.28"
• Width (US): 1.32"

Technical Information

• Amps: 20A
• Volts: 125V
• Volts (AC): 125
• Capacity: Single
• Grade Type: Hospital

Buy American Act Compliance

• Country Of Origin: MEXICO
• Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

• RoHS Compliant
