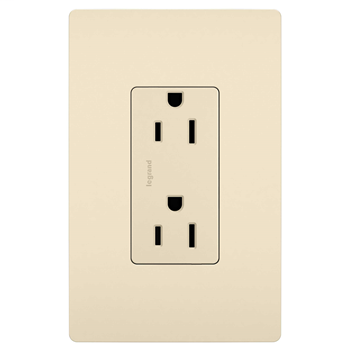

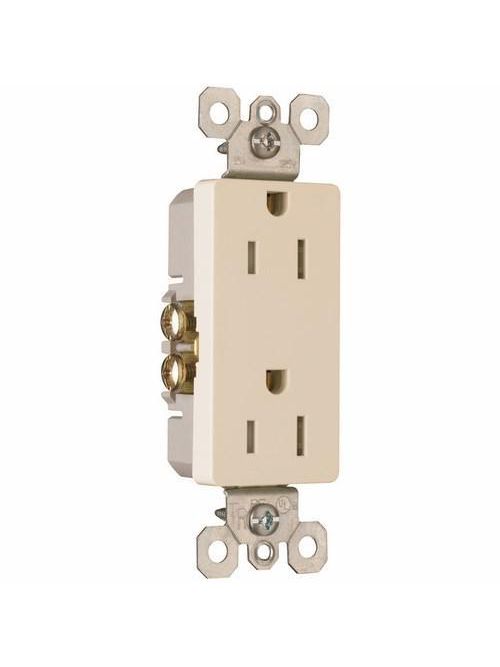

Pass & Seymour 885-TRLA 15 Amp 125 VAC 2-Pole 3-Wire NEMA 5-15R Light Almond Thermoplastic Duplex Decorator Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$9.42/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # 885TRLA
North Coast Part # 494606

Features

  • Replaces any standard oulet with ease.
  • Meets NEC® Tamper-Resistant requirements.
  • Protects children: patented shutter system helps prevent improper insertion of foreign objects—now with black "invisi-shutters" for an invisible effect preferred by end users.
  • High-impact resistant thermoplastic construction and long-term blade retention for extended service life.
  • Superior protection than traditional outlet caps or protection plates.
  • Low-profile face; ultrasonic welding of face to back body for greater reliability.
  • Side-access push wire release; side wire terminal screws #12 – #14 AWG solid wire; push wire terminals accept #14 AWG solid cooper wire only.
  • Longer tri-drive screws and quick loop wiring aid for easier #12 AWG looping.
  • Extra-large circuit break-off tabs.
  • Captivated mounting screws offer hassle-free installation.
  • For covering patents, see www.legrand.us/patents.

Specifications

General Info

  • Color: Light Almond

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Listing Info: C22.2 No.42
  • CSA Standard: Yes
  • cULus: Yes
  • UL Listing No: UL498
  • UL Standard: Yes
  • UN SPSC: 39121704

Construction Information

  • Component 4: 78500730476

Dimensions

  • Depth (US): 1"
  • Height (US): 3.812"
  • Width (US): 1.29"

Technical Information

  • Amps: 15A
  • Volts: 125

Buy American Act Compliance

  • Country Of Origin: CHINA

Eco-Benefit Information

  • RoHS Compliant

Video

Overview

UPC 78500786100
GTiN 00785007861006
Finish Decor, Gloss
Width 1.29 in
Size 4.2 in
Color Light Almond
Voltage 125 Volt
Type Tamper-Resistant Decorator, Self Grounding
Thickness 1 in
Material Thermoplastic
Applications Residential/Commercial
Mounting Type Wall, Flush
Depth 1 in
Height 3.812 in
Grade Residential/Commercial
Country of Origin China
Family Brand Name Pass & Seymour
Amperage 15 Amp
Blade Dimensions 32.77 mm W x 25.4 mm D x 96.83 mm H
Number of Gangs 2 Gang
UNSPSC 39121704
Sub Brand The Radiant
