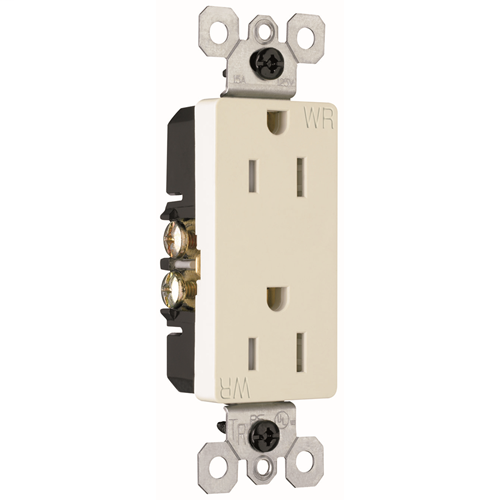

Pass & Seymour 885-TRWRLA 15 Amp 125 VAC 2-Pole 3-Wire NEMA 5-15R Light Almond Thermoplastic Duplex Decorator Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$5.65/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # 885TRWRLA
North Coast Part # 552899

Features & Benefits

  • WR markings on face per UL Weather-Resistant requirements.
  • Push wire accepts #14 AWG solid only. Low profile face.
  • Side wire accepts #12 – #14 AWG solid wire.
  • High-impact resistant thermoplastic construction.
  • TR markings identify devices as Tamper-Resistant.
  • Listed to the Weather-Resistant supplement of UL498, meeting demanding UL requirements including: Ultraviolet light exposure test; Cold impact test; Accelerated aging test; Stringent material requirements for current-carrying parts, wire binding screws and mounting straps to ensure superior corrosion resistance.
  • Residential Weather-Resistant Receptacles are Tamper-Resistant as required by 2008 National Electrical Code.
  • For covering patents, see www.legrand.us/patents.
  • Safer and more effective than plastic outlet caps.
  • Traditional contoured face.
  • Patented internal shutter system lets plugs in, but keeps keys and other objects out with automatic shutters that block access.

Specifications

General Info

  • Color: Light Almond
  • Special Features: Weather-Resistant
  • Number Of Wires: 3
  • Style: Decorator
  • Number Of Poles: 2
  • Type: Weather-Resistant

Technical Information

  • Volts: 125
  • Amps: 15A
  • Volts A C: 125

Buy American Act Compliance

  • Buy American Act Status: Trade Agreement Act Compliant
  • Country of Origin: MEXICO

Listing Agencies/Third Party Information

  • CSA Listing Info: C22.2 No.42
  • CSA Standard: Yes
  • cULus: Yes
  • UL Listing No: UL498
  • UL Standard: Yes
  • Federal Spec: No
  • UN SPS C: 39121704

Dimensions

  • Height (U S): 3.31"
  • Width (U S): 1.29"
  • Depth (U S): 1"

Available Options

  • Weather-Resistant Receptacle

Resources

Overview

UPC 78500724178
Item Long Description Decorator Weather-Resistant Duplex Receptacle. 15 amp, 125 volt. Light Almond.
GTiN 00785007241785
Width 1.29 in
Size 4.25"
Color Light Almond
Voltage 125 Volt
Type Weather-Resistant
Thickness 1.3"
Material Thermoplastic
Applications Residential/Commercial
Depth 1 in
Height 3.31 in
Country of Origin Mexico
Style Decorator
Family Brand Name Pass & Seymour
Certifications CULUS
Amperage 15 Amp
Number of Gangs 2 Gang
Number of Poles 2 Pole
Number of Wires 3
Orientation Vertical
Sub Brand Pass & Seymour
