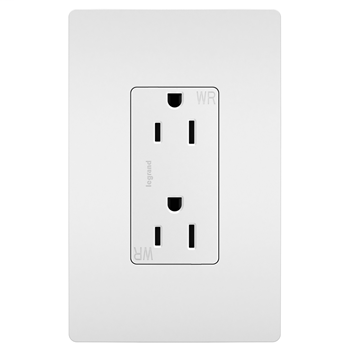

Pass & Seymour 885-TRWRW 15 Amp 125 VAC 2-Pole 3-Wire NEMA 5-15R White Thermoplastic Duplex Decorator Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$12.19/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # 885TRWRW
North Coast Part # 548633

Features

  • Residential Weather-Resistant Receptacles are Tamper-Resistant as required by National Electrical Code.
  • Listed to the Weather-Resistant supplement of UL498, meeting demanding UL requirements including: Ultraviolet light exposure test; Cold impact test; Accelerated aging test; Stringent material requirements for current-carrying parts, wire binding screws and mounting straps to ensure superior corrosion resistance.
  • WR markings on face per UL Weather-Resistant requirements.
  • Patented internal shutter system lets plugs in, but keeps keys and other objects out with automatic shutters that block access.
  • Side wire accepts #12 – #14 AWG solid wire.
  • Push wire accepts #14 AWG solid only. Low profile face.
  • Traditional contoured face.
  • High-impact resistant thermoplastic construction.
  • Safer and more effective than plastic outlet caps.
  • TR markings identify devices as Tamper-Resistant.
  • For covering patents, see www.legrand.us/patents.

Specifications

General Info

  • Color: White
  • Number Of Poles: 2
  • Number Of Wires: 3

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Listing Info: C22.2 No.42
  • CSA Standard: Yes
  • cULus: Yes
  • UL Listing No: UL498
  • UL Standard: Yes
  • UN SPSC: 39121704

Construction Information

  • Component 4: 78500724171

Dimensions

  • Depth (US): 1"
  • Height (US): 3.31"
  • Width (US): 1.29"

Technical Information

  • Amps: 15A
  • Volts: 125

Buy American Act Compliance

  • Country Of Origin: MEXICO
  • Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Video

Overview

UPC 78500724179
GTiN 00785007241792
Width 1.29 in
Size 4.25"
Color White
Voltage 125 Volt
Type Receptacle
Thickness 1.3"
Material Thermoplastic
Applications Residential/Commercial
Depth 1 in
Height 3.31 in
Country of Origin Mexico
Family Brand Name Pass & Seymour
Amperage 15 Amp
Number of Gangs 2 Gang
Number of Poles 2 Pole
Number of Wires 3
Orientation Vertical
UNSPSC 39121704
Sub Brand Pass & Seymour
