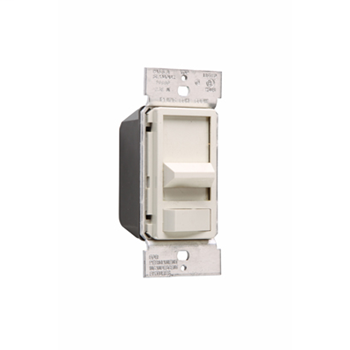

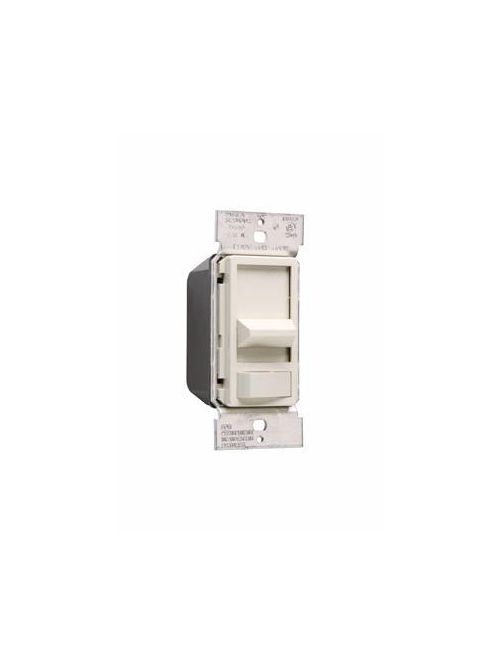

Wattstopper 90680LA 600 W 120 Volt 1-Pole Light Almond Incandescent Slide with Preset On/Off Dimmer
Product image thumbnail 0
Product image thumbnail 1
$70.13/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # 90680LA
North Coast Part # 754774

Features

  • Maximum ratings are for continuous full load.
  • Many 1000W models fit standard Decorator plates.
  • RFI suppression built in.
  • Full-On bypass.
  • Preset ON/OFF switch automatically returns controlled lights to preset level without readjusting dimmer setting.
  • 600W maximum rated dimmers can be ganged without de-rating.
  • For covering patents, see www.legrand.us/patents.

Specifications

  • Voltage: 120.0 V
  • Country Of Origin: MX
  • Wattage: 600.0 W
  • Certifications: CULUS
  • Load: Incandescent
  • Product Line: Pass & Seymour
  • Connection: Screw Terminals
  • Number of Poles: Single Pole
  • Application Sector: Residential
  • Frequency Rating: 120VAC 60Hz Hz
  • Standard: RoHS, CSA Listed, UL Listed
  • Special Features: P&S dimmers extend bulb life and can reduce energy consumption by up to 30%. This versatile dimmer features a sleek, ergonomic Decorator style to match other P&S Decorator devices. Convenient operation combines ON/OFF Decorator style switch with separate slider for dimming controls.
  • Environmental Conditions: Humidity: Less than 95% non condensing

Certifications

  • cULus Listed

Overview

UPC 78500726882
GTiN 00785007268829
Width 1.688 in
Size 4.75" In
Color Light Almond
Operating Temperature Ambient Temperature: 0 and 40C
Type Incandescent
Material Thermoplastic
Product Series Wide Slide
Applications Residential
Depth 1.469 in
Height 4.25 in
Country of Origin Mexico
Wattage 600 Watt
Family Brand Name Wattstopper
Certifications CULUS
TC Connection Screw Terminals
Actuator Slide
Environmental Conditions 0 to 95 PCT
Number of Poles 1 Pole
Enclosure Thermoplastic
UNSPSC 39121502
Sub Brand Wattstopper
Voltage 120 Volt
