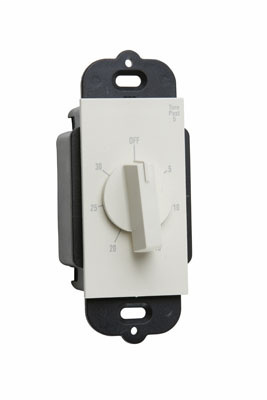

P&S 97030W TIMER 30MIN 1HP20A125V/1
Product image thumbnail 0
Product image thumbnail 1
$93.52/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # 97030W
North Coast Part # 215587

Features

  • Units with ''Hold'' feature may be turned counter-clockwise to hold the load on without timing function.
  • Turning clockwise causes unit to time load off after desired time delay.
  • Quiet operation.
  • Time range from 5 minutes to 12 hours.
  • Available with or without hold.
  • Decorator styling.
  • Easily installed.
  • Large head screw terminals.
  • Accurate to +/- 5 percent.
  • Motor rated.
  • Energy saving.

Specifications

  • Amperage: 10/20 A
  • Action: Single Pole
  • Voltage: 125.0 V, 250.0 V
  • Timing Range: 30 minutes
  • Timer Duration: 30 Minutes
  • Application Sector: Residential
  • Connection: Back & Side Wired
  • Coil Voltage: 120VAC @ 60Hz
  • Standard: CSA Listed, cULus, UL Listed
  • Special Features: Wall Box Rotary Timer
  • Certifications: UL,CSA,CULUS
  • Color: White
  • Country Of Origin: CN
  • Product Line: Pass & Seymour

Certifications

  • CSA Listed: 074656
  • cULus Listed: 103624
  • UL Listed: 103624

Overview

GTiN 00785007970333
Width 1.8 in
Size 1.85" Depth x 1.8" Width x 4.2" Height
Color White
Operating Temperature Between 0C and 40C
Type Non-Reversing
Applications Resdential
Depth 1.85 in
Height 4.2 Inch
Country of Origin China
Style Decorator
Coil Voltage 120@60Hz V
Family Brand Name Pass & Seymour
Buy American Compliant No
TC Connection Back & Side Wired
Action SP
UNSPSC 39121559
Sub Brand Pass & Seymour
Product UPC 78500797033
Voltage 125 Volt
Certifications CSA,CULUS,UL
Amperage 10/20 Amp
