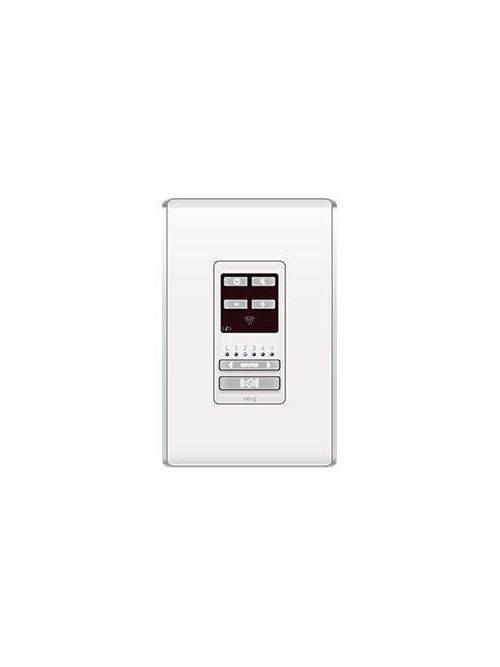

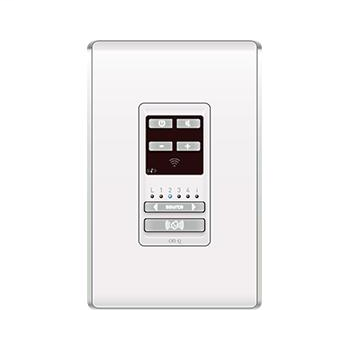

On-Q AU5010-WH 1.65 x 2.25 x 4.14 Inch White ABS Plastic Wall Mount Studio Design Audio System Keypad
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # AU5010-WH
North Coast Part # 1014794


  • Presented in the Studio Design. Blends seamlessly with additional Studio products such as Selective Call Intercom, Cameras and the Unity Home System.
  • Contains an RJ45 connection for easy Cat 5 based installation.
  • Enhanced performance with 20 W per channel (class D) power and active subwoofer support with an 80 Hz low pass filter.
  • Select the local source input directly from the keypad.


General Info

  • Discontinued: Yes
  • Color: White
  • Product Series: Studio

Construction Information

  • Spec 1: Power Requirements


  • Overall Dimensions (US): 4.14" H x 1.65" W x 2.25" D (105.2 x 42 x 61.8mm)

Technical Information

  • Cat5 Cable Rating: Cat 5 UTP, 4 pair solid conductor (24 AWG)
  • External Power Input: +24-30 Vdc
  • Frequency Response: 20 - 20,000 Hz ± 1 dB
  • IR Receive Frequency: 10 KHz - 110 KHz
  • Operating Temperature (Celsius): 0 to 55ºC
  • Output And Line Out Connection: 14-28 AWG Springcon Terminal Block AWG
  • Output Impedance: 8 Ohms per channel (1 pair of speakers)
  • Power Requirements: +24 Vdc, +0/-6 Vdc, 1500m A max
  • Speaker Impedance Load: Load
  • Storage Temperature: -25 to 75 Degrees Celsius



UPC 80442802714
Item Long Description Perfect for applications requiring superior power and fidelity, this keypad features enhanced performance over the standard lyriQ Keypad. It enables direct selection of the local source, as well as a convenient whole house button. The keypad includes backlit buttons to indicate unit status, and an RJ45 connection for easy, Cat 5 based installation.
GTiN 00804428027140
Color White
Product Series Studio
Family Brand Name On-Q
