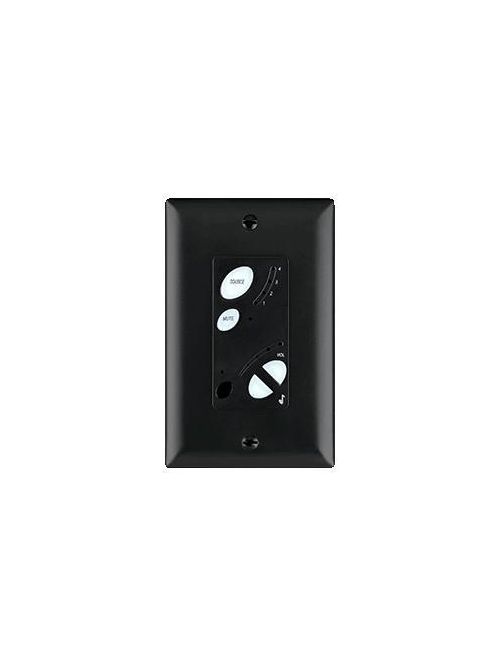

OnQ AU7394-BK LYRIQ STD AMPLIFIED K
Product image thumbnail 0
Product image thumbnail 1
$239.88/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # AU7394-BK
North Coast Part # 679014

Features

  • Adjustable backlight levels for increasing or decreasing illumination
  • Stylish, decorator-style keypad – perfect for any decor
  • Provides 50% in energy savings
  • Amplifiers go into standby mode after 20 minutes of non-use
  • Improved efficiency due to class D amplification
  • Infrared sensors allow easy remote control of volume level and whole house commands

Specifications

General Info

  • Discontinued: Yes
  • Color: Black

Dimensions

  • Overall Dimensions (Metric): 105.2x42x61.8mm
  • Overall Dimensions (US): 4.14”H x 1.65”W x 2.43”D
  • Weight: 0.260 lb (118g)

Technical Information

  • External Power Input: +24-30Vdc
  • Frequency Response: 20-20,000Hz ± 2dB
  • IR Range On Axis: 25ft Max; IR Range 30 degrees off-axis 20ft max
  • IR Receive Frequency: 10KHz - 110KHz
  • Material: ABS Plastic/Aluminum
  • Mounting: Dimensions
  • Output And Line Out Connection: 14-28 AWG Springcon® Terminal Block AWG Springcon© Terminal Block
  • Output Impedance: 8 Ω (1 pair of speakers)
  • Power Requirements: +24Vdc ± 6Vdc, 500mA average

Buy American Act Compliance

  • Buy American Act Status: Exception
  • Note: Contact Customer Support for Buy American Act options

Overview

UPC 80442802729
GTiN 00804428027294
Color Black
Type Audio Keypad
Material ABS,Aluminum,Plastic
Applications Residential
Mounting Type Dimensions
Cable Type Cat5
Weight 0.260 lb
Style Decorator
Family Brand Name On-Q
Sub Brand On-Q
