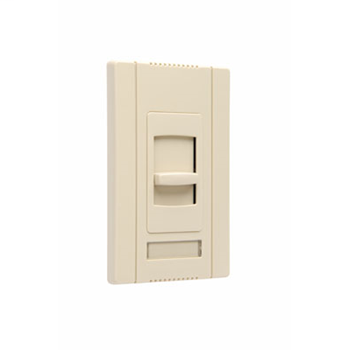

SLIDE EFL SP 2WIRE 8A IV
$291.94/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # CDFB8I
North Coast Part # 683161

Features

  • For use with 2 wire 120V and 277V fluorescent dimming ballasts.
  • Field configurable wall plate system.
  • Labeling system.
  • Adjustable low end output voltage.
  • Shipped with protective film.
  • Rugged construction.
  • Superior ratings with a minimum of derating when ganged.
  • Simple to plan the rough-in.
  • Available in single pole slide-to-OFF and single pole/3-way preset models.
  • Attractive European styling.
  • Eye-catching packaging.
  • Exclusive adaptor kit to install other Decorator opening devices under the Titan™ wall plate system.
  • Blank center plate included.
  • For covering patents, see www.legrand.us/patents.

Specifications

General Info

  • Color: Ivory
  • Size: Narrow
  • Product Series: Titan
  • Type: Fluorescent
  • Number Of Poles: 1
  • Number Of Wires: 2
  • Style: Narrow

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Listing Info: No
  • CUL Listing No: No
  • cULus: Yes
  • cURus: No
  • Federal Spec: No
  • UL Listing No: No
  • UN SPSC: 39121559
  • UR: No

Dimensions

  • Depth (US): 1.44"
  • Height (US): 4.87"
  • Width (US): 2.85"

Technical Information

  • Amps: 8A
  • Volts: 120V

Buy American Act Compliance

  • Country Of Origin: CHINA
  • Buy American Act Status: No

Eco-Benefit Information

  • RoHS Compliant
  • LEED Contribution: Yes

Video

Overview

UPC 78500730202
GTiN 00785007302028
Width 2.85 in
Size Narrow
Color Ivory
Operating Temperature Ambient: Between 0 to 40C Deg
Voltage 120 Volt
Type Fluorescent
Material Thermoplastic
Product Series Titan
Applications Commercial
Depth 1.44 in
Height 4.87 in
Country of Origin China
Style Narrow
Family Brand Name Legrand
Buy American Compliant No
Actuator Slide
Amperage 8 Amp
Environmental Conditions 0 to 95 PCT
Number of Poles 1 Pole
Number of Wires 2
Enclosure Thermoplastic
Operating Cycles 10k
UNSPSC 39121559
Sub Brand Pass & Seymour
