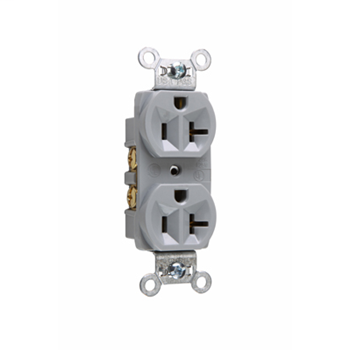

Pass & Seymour CR20-GRY 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R Gray Nylon Face Corrosion-Resistant Duplex Receptacle

$2.62/ea

Usually ships within 11 to 17 Days

Adding...

Already a Customer? Log in to view your pricing

Features

Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly.
.032 inch thick, brass, triple-wipe power contacts for lasting retention.
Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
Impact-resistant nylon face and thermoplastic back body.
Accepts #14 - #10 AWG solid or stranded copper or copper-clad wire.
Terminal compartments isolated from each other for positive conductor containment.
Tri-drive terminal and mounting screws.
Auto-ground clip assures positive ground.
For covering patents, see www.legrand.us/patents.
For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

UPC	78500711914
Item Long Description	Commercial Spec Grade Duplex Receptacle, Side Wire 20amp 125volt, Gray
GTiN	00785007119145
Finish	Gloss
Width	1.322 in
Size	3.3 in
Color	Gray
Voltage	125 Volt
Type	Receptacles
Material	Thermoplastic
Conductor Size	4 AWG
Applications	Residential/Commercial
Mounting Type	Wall, Flush, Screw
Depth	0.78 in
Height	3.281 in
Grade	Commercial
Country of Origin	Mexico
Wire Size	4 AWG
Capacity	Duplex
Connection Type	Wire Ground
Family Brand Name	Pass & Seymour
Certifications	CULUS
TC Connection	Wire Ground
Amperage	20 Amp
Dielectric Strength	1500 V
Blade Dimensions	33.58 mm W x 19.81 mm D x 83.31 mm H
Number of Poles	2 Pole
Number of Wires	3
UNSPSC	39121406
Sub Brand	Pass & Seymour
NEMA	5-20R
