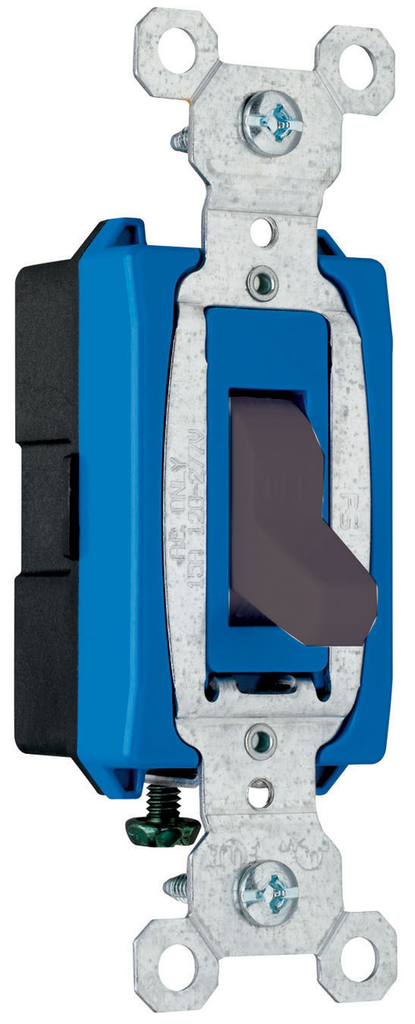

P&S CS15AC1BK 15A 120/277VAC S WIRE
$5.98/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # CS15AC1BK
North Coast Part # 548365

Features

  • One-piece brass alloy contact arm for reliable electrical performance.
  • One-piece steel strap with integral ground is plated for corrosion resistance.
  • High strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse.
  • Heavy-duty toggle bumpers for smooth and quiet operation.
  • Back body made of glass-reinforced nylon. Locking support provides resistance to face and back body separation.
  • Available with side wire or external screw-pressure-plate back and side wire models capable of accepting #14 - #10 AWG copper or copper-clad wire.
  • Cam designed for fast make with positive break action to minimize arcing and prolong switch life.
  • Oversized silver alloy contacts for longer dependable switch life.
  • Tri-drive terminal and mounting screws.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

  • Country Of Origin: MX
  • Standard: UL 20
  • Amperage: 15.0 A
  • Certifications: FEDSPEC,CULUS
  • Wattage: 1.0 W
  • Color: Black
  • Product Line: Pass & Seymour
  • Voltage: 120.0 V
  • Application Sector: Commercial
  • Number of Poles: Single Pole
  • Closed Contact Resistance: Toggle
  • Contact Rating: 15amp, 120/277vac
  • Special Features: High strength toggle, heavy duty toggle bumpers, locking support

Certifications

  • cULus Listed
  • Federal Spec Listed

Overview

UPC 78500710893
GTiN 00785007108934
Width 1.320 in
Size 3.3"
Color Black
Voltage 120 Volt
Type Side Wire
Applications Commercial
Depth 1.073 in
Height 3.281 in
Grade Commercial
Country of Origin Mexico
Wattage 1 Watt
Family Brand Name Pass & Seymour
Certifications CULUS,FEDSPEC
Actuator Toggle
Duty Rating Heavy Duty
Amperage 15 Amp
Blade Dimensions 3.3 in
Contact Rating 15amp, 120/277vac
Number of Poles 1 Pole
UNSPSC 39121507
Sub Brand Pass & Seymour
