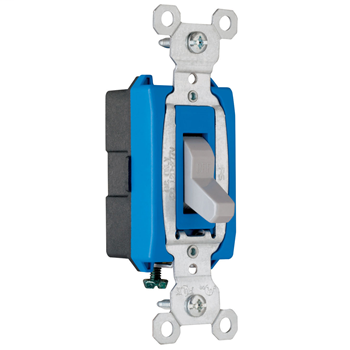

Pass & Seymour CS15AC1-GRY 15 Amp 120/277 VAC 1-Pole Gray Glass Reinforced Nylon Screw Mounting Toggle Switch
$5.85/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # CS15AC1GRY
North Coast Part # 933102

Features

  • One-piece brass alloy contact arm for reliable electrical performance.
  • One-piece steel strap with integral ground is plated for corrosion resistance.
  • High strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse.
  • Heavy-duty toggle bumpers for smooth and quiet operation.
  • Back body made of glass-reinforced nylon. Locking support provides resistance to face and back body separation.
  • Available with side wire or external screw-pressure-plate back and side wire models capable of accepting #14 - #10 AWG copper or copper-clad wire.
  • Cam designed for fast make with positive break action to minimize arcing and prolong switch life.
  • Oversized silver alloy contacts for longer dependable switch life.
  • Tri-drive terminal and mounting screws.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

General Info

  • Color: Gray
  • Type: Side Wire
  • Duty: Heavy Duty
  • Number Of Poles: 1

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Listing Info: C22.2 111
  • CSA Standard: Yes
  • Federal Spec: Yes
  • UL Listing No: 20
  • UL Standard: Yes
  • UN SPSC: 39121507

Dimensions

  • Depth (US): 1.073"
  • Height (US): 3.281"
  • Width (US): 1.320"

Technical Information

  • Amps: 15A
  • Volts: 120/277VAC
  • Volts (AC): 120/277
  • Grade Type: Commercial

Buy American Act Compliance

  • Country Of Origin: MEXICO
  • Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Video

Overview

UPC 78500712656
GTiN 00785007126563
Width 1.320 in
Size 3.3"
Color Gray
Voltage 120 Volt
Type Heavy Duty
Applications Commercial/Residential
Depth 1.073 in
Height 3.281 in
Grade Commercial
Country of Origin Mexico
Family Brand Name Pass & Seymour
Certifications CULUS,FEDSPEC
Actuator Toggle
Duty Rating Heavy Duty
Amperage 15 Amp
Contact Rating 15Amp, 120/277V
Number of Poles 1 Pole
Action Snap
UNSPSC 39121507
Sub Brand Pass & Seymour
Material Nylon Front Body, Glass-Reinforced Nylon Back Body, Thermoplastic Polycarbonate Toggle
Blade Dimensions 3.3 in
