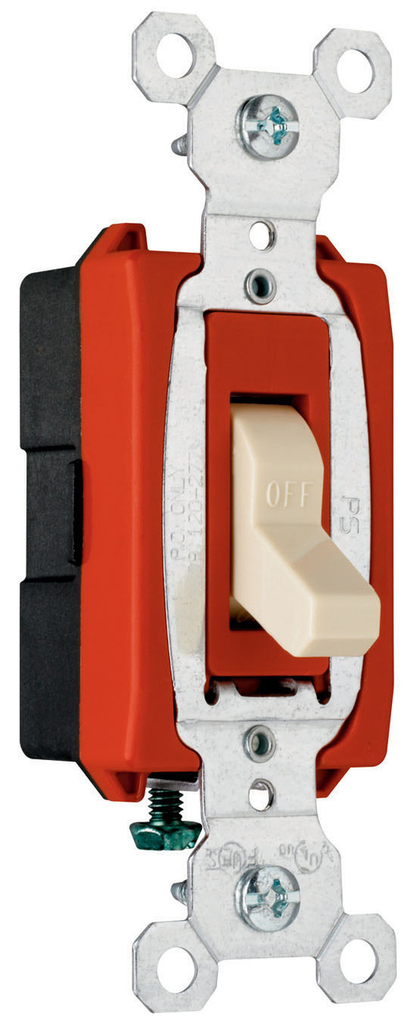

Pass & Seymour CSB20AC1-I 20 Amp 120/277 VAC 1-Pole Ivory Glass Reinforced Nylon Screw Mounting Toggle Switch
Product image thumbnail 0
Product image thumbnail 1
$13.72/ea
In Stock | 308 available at 11 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # CSB20AC1I
North Coast Part # 41112

Features

  • One-piece brass alloy contact arm for reliable electrical performance.
  • One-piece steel strap with integral ground is plated for corrosion resistance.
  • High strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse.
  • Heavy-duty toggle bumpers for smooth and quiet operation.
  • Back body made of glass-reinforced nylon. Locking support provides resistance to face and back body separation.
  • Available with side wire or external screw-pressure-plate back and side wire models capable of accepting #14 - #10 AWG copper or copper-clad wire.
  • Cam designed for fast make with positive break action to minimize arcing and prolong switch life.
  • Oversized silver alloy contacts for longer dependable switch life.
  • Tri-drive terminal and mounting screws.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

  • Amperage: 20.0 A
  • Country Of Origin: MX
  • Certifications: CULUS,FEDSPEC
  • Actuator: Toggle
  • Color: Ivory
  • Voltage: 120.0 V
  • Product Line: Pass & Seymour
  • Standard: UL 498/20
  • Action: Single pole
  • Application Sector: Commercial
  • Number of Poles: Single Pole
  • Contact Rating: 20Amp, 120/277Vac
  • Special Features: Back & side wire, locking support, heavy duty toggle

Certifications

  • Federal Spec Listed
  • cULus Listed: 140597
> View Substitutes (1)

Overview

UPC 78500712607
GTiN 00785007126075
Width 1.320 in
Size 3.3 in
Color Ivory
Voltage 120 Volt
Type Heavy Duty
Material Thermoplastic
Applications Commercial
Depth 1.073 in
Height 3.281 in
Grade Commercial
Country of Origin Mexico
Family Brand Name Pass & Seymour
Certifications CULUS,FEDSPEC
Actuator Toggle, Rocker/Button
Duty Rating Hard Use
Amperage 20 Amp
Blade Dimensions 3.3 in
Contact Rating 20Amp, 120/277Vac
Number of Poles 1 Pole
Enclosure Nylon
Action Off
UNSPSC 39121507
Sub Brand Pass & Seymour
