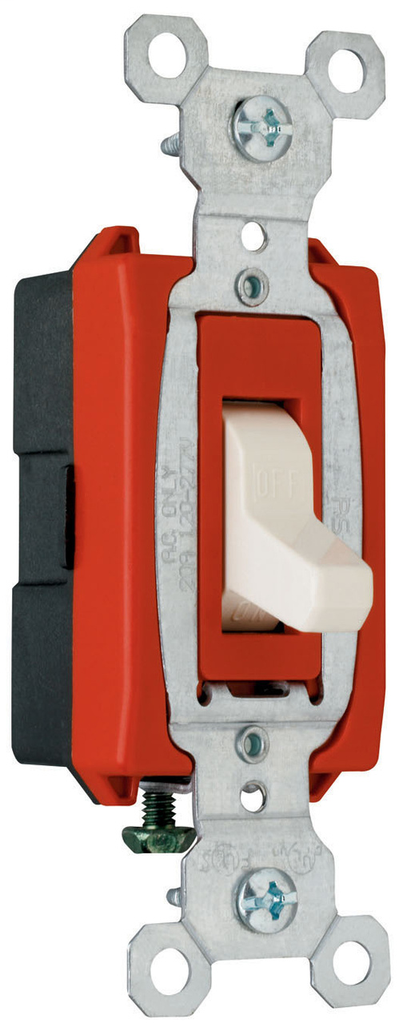

Pass & Seymour CSB20AC1-LA 20 Amp 120/277 VAC 1-Pole Light Almond Glass Reinforced Nylon Screw Mounting Toggle Switch
$13.72/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # CSB20AC1LA
North Coast Part # 156156

Features

  • One-piece brass alloy contact arm for reliable electrical performance.
  • One-piece steel strap with integral ground is plated for corrosion resistance.
  • High strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse.
  • Heavy-duty toggle bumpers for smooth and quiet operation.
  • Back body made of glass-reinforced nylon. Locking support provides resistance to face and back body separation.
  • Available with side wire or external screw-pressure-plate back and side wire models capable of accepting #14 - #10 AWG copper or copper-clad wire.
  • Cam designed for fast make with positive break action to minimize arcing and prolong switch life.
  • Oversized silver alloy contacts for longer dependable switch life.
  • Tri-drive terminal and mounting screws.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

  • Standard: UL20
  • Country Of Origin: MX
  • Action: DP
  • Certifications: CULUS,FEDSPEC
  • Amperage: 20.0 A
  • Actuator: Toggle
  • Product Line: Pass & Seymour
  • Voltage: 120.0 V
  • Number of Poles: Single Pole
  • Contact Rating: 20Amp, 120/277V
  • Application Sector: Residential/Commercial
  • Special Features: Back & Side wire, locking support, one piece brass alloy contact arm

Certifications

  • cULus Listed: 140597
  • Federal Spec Listed

Overview

UPC 78500712608
GTiN 00785007126082
Width 1.320 in
Size 3.3"
Color Light Almond
Voltage 120 Volt
Type Switch
Applications Commercial/Residential
Depth 1.073 in
Height 3.281 in
Grade Specification
Country of Origin Mexico
Family Brand Name Pass & Seymour
Certifications CULUS,FEDSPEC
Actuator Toggle
Duty Rating Hard Use
Amperage 20 Amp
Contact Rating 20Amp, 120/277V
Number of Poles 1 Pole
Action DP
UNSPSC 39121507
Sub Brand Pass & Seymour
