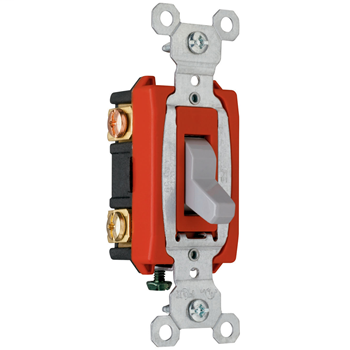

Pass & Seymour CSB20AC3-GRY 20 Amp 120/277 VAC 3-Way Gray Glass Reinforced Nylon Screw Mounting Toggle Switch

Features

• One-piece brass alloy contact arm for reliable electrical performance.
• One-piece steel strap with integral ground is plated for corrosion resistance.
• High strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse.
• Heavy-duty toggle bumpers for smooth and quiet operation.
• Back body made of glass-reinforced nylon. Locking support provides resistance to face and back body separation.
• Available with side wire or external screw-pressure-plate back and side wire models capable of accepting #14 - #10 AWG copper or copper-clad wire.
• Cam designed for fast make with positive break action to minimize arcing and prolong switch life.
• Oversized silver alloy contacts for longer dependable switch life.
• Tri-drive terminal and mounting screws.
• For covering patents, see www.legrand.us/patents.
• For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

General Info

• Color: Gray
• Duty: Hard Use
• Number Of Poles: 3-way

Listing Agencies/Third Party Certifications

• RoHS: Yes
• CSA Listing Info: C22.2 111
• CSA Standard: Yes
• Federal Spec: Yes
• UL Listing No: 20
• UL Standard: Yes
• UN SPSC: 39121507

Dimensions

• Depth (US): 1.073"
• Height (US): 3.281"
• Width (US): 1.320"

Technical Information

• Amps: 20A
• Volts: 120/277VAC
• Volts (AC): 120/277
• Grade Type: Specification

Buy American Act Compliance

• Country Of Origin: MEXICO
• Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

• RoHS Compliant
