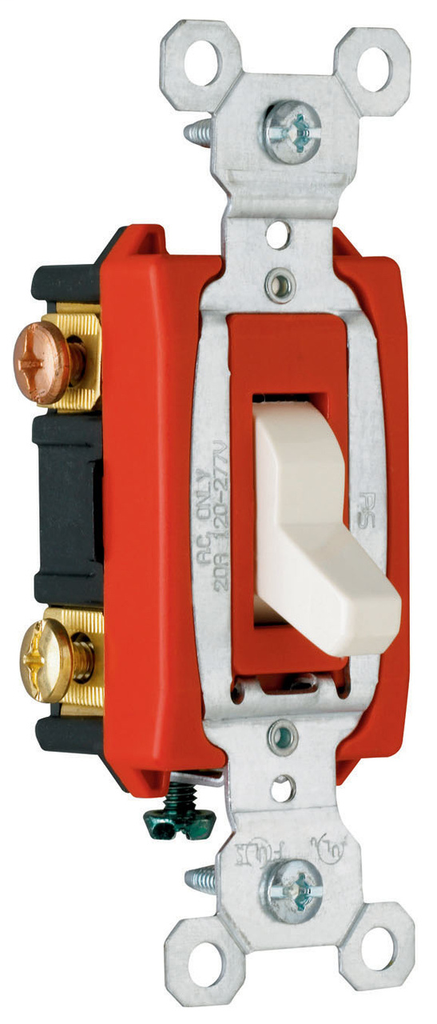

Pass & Seymour CSB20AC3-LA 20 Amp 120/277 VAC 3-Way Light Almond Glass Reinforced Nylon Screw Mounting Toggle Switch

Features

• One-piece brass alloy contact arm for reliable electrical performance.
• One-piece steel strap with integral ground is plated for corrosion resistance.
• High strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse.
• Heavy-duty toggle bumpers for smooth and quiet operation.
• Back body made of glass-reinforced nylon. Locking support provides resistance to face and back body separation.
• Available with side wire or external screw-pressure-plate back and side wire models capable of accepting #14 - #10 AWG copper or copper-clad wire.
• Cam designed for fast make with positive break action to minimize arcing and prolong switch life.
• Oversized silver alloy contacts for longer dependable switch life.
• Tri-drive terminal and mounting screws.
• For covering patents, see www.legrand.us/patents.
• For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

• Country Of Origin: MX
• Standard: UL 20
• Amperage: 20.0 A
• Certifications: CULUS,FEDSPEC
• Wattage: 3.0 W
• Product Line: Pass & Seymour
• Voltage: 120.0 V
• Number of Poles: 3-Way
• Application Sector: Commercial
• Closed Contact Resistance: Toggle
• Contact Rating: 20amp, 120/277vac
• Special Features: High strength toggle, heavy duty toggle bumpers, locking support

Certifications

• cULus Listed: 140597
• Federal Spec Listed
