Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # IC7400LA
North Coast Part # 1826089

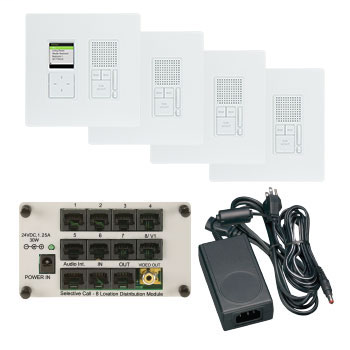

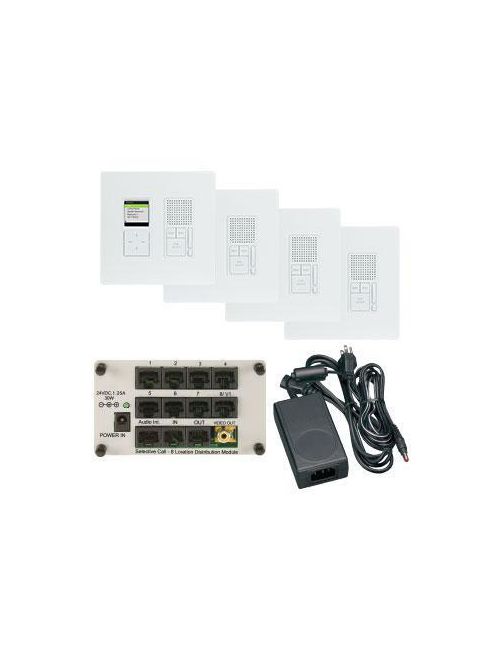

  • Everything you need for 4 rooms of Intercom: (4) Selective Call Room Units, (4) 2-gang radiant™ screwless wall plates, (1) 8-location distribution module & (1) 30 watt power supply.
  • Support for room-to-room calling, hands-free replying, monitoring, do not disturb and mute
  • High resolution color LCD display with intuitive navigation
  • Custom room names for a truly personalized user experience
  • Room grouping and broadcast for easy calling of multiple locations at once
  • Part of the radiant® Collection
  • Available in White & Light Almond


General Info

  • Color: Light Almond

Construction Information

  • Material 1: ABS Plastic/Steel


  • Height (Metric): 292mm
  • Height (US): 11.5in
  • Width (Metric): 270
  • Width (US): 10.6
  • Overall Dimensions (US): 11.5" x 10.6" in
  • Weight Metric: 0.5805982 kg
  • Weight: 1.28 lb

Technical Information

  • Cat5 Cable Rating: CAT5 UTP, 4 pair solid conductor (24 AWG)
  • Humidity: Up to 90% RH (non-condensing)
  • Material: ABS Plastic/Steel
  • Operating Temperature (Celsius): 0 to 55ºC
  • Power Requirements: +24 Vdc, +/-1.25 Vdc, 0.25 A max
  • QLink Selective Call Ports: RJ-45
  • Storage Temperature: -55 to 75ºC


UPC 80442843222
Item Long Description This IC7400 radiant Selective Call 4-Room Intercom Kit is the perfect starting point for a best-in-class intercom system. With room-to-room calling, room grouping, and customizable room naming capabilities, the IC7400 offers a more convenient means of calling the kids to dinner or checking on the baby.
GTiN 00804428432227
Length 13.38 in
Width 8.19 in
Color Light Almond
Operating Temperature 32F to 131F (0C to 55C)
Type Part of the Selective Call Intercom System
Material ABS,Plastic,Steel
Applications Residential
Height 11.5 in
Weight 1.28 lb
Family Brand Name On-Q
Power Supply 24 VDC/1.25A, 100-240 VAC/50-60Hz
Environmental Conditions 0 to 90 Relative Humidity (non-condensing) %
Enclosure Mounts in a standard electrical wall box or mud ring
Sub Brand Legrand-On-Q
