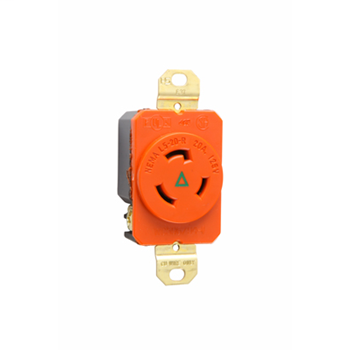

Pass & Seymour IGL520-R 20 Amp 125 VAC 2-Pole 3-Wire NEMA L5-20R Orange Nylon Single Isolated Ground Receptacle
$49.18/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # IGL520R
North Coast Part # 549638

Features

  • UL1449 (latest revision). (1.2 x 50µs 6000V,8 x 20µs 3000A).
  • 140 joules of energy absorption in each of the three modes.
  • 9,000 amps current handling capability in each of three modes; line to neutral, line to ground, neutral to ground.
  • 1 filtering capacitor for 7 to 1 average noise reduction.
  • Nominal let-through (suppressed) voltage in all 3 modes, 500V.
  • LED indicator light.
  • Response time less than 1 nanosecond for unmounted MOV.
  • Overcurrent protection in all 3 modes.
  • Electronic components potted for electrical, mechanical and thermal stability.
  • Thermal protection in all 3 modes.
  • Leakage current: 0.5 mA at 25°C/120VAC.
  • 3 18mm super MOVs to suppress transients in all modes – equally.
  • Common mode noise attenuation:500 KHz to 30 MHz; up to 35 dB(50 ohm source impedance)
  • Varistor voltage: 150V RMS.
  • Back and side wire capability including ground terminal.
  • Operating temperature: -40°C to 85°C(-40°F to 185°F)
  • Conforms to the latest revision ANSI/IEEE C62.41 (formerly IEEE 587), ANSI/IEEE C62.45.

Specifications

General Info

  • Color: Orange
  • Type: Single Receptacles
  • Number Of Wires: 3
  • Special Features: Isolated Ground

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Listing Info: Yes
  • CSA Standard: Yes
  • CUL Listing No: No
  • cULus: Yes
  • cURus: No
  • Federal Spec: No
  • UL Listing No: 498
  • UL Standard: Yes
  • UN SPSC: 39121403
  • UR: No

Dimensions

  • Depth (US): 1.19"
  • Height (US): 3.28"
  • Width (US): 1.61"

Technical Information

  • Amps: 20A
  • NEMA Configuration Number: L520
  • Volts: 125V
  • Volts (AC): 125

Buy American Act Compliance

  • Country Of Origin: MEXICO
  • Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Overview

UPC 78500725235
GTiN 00785007252354
Width 1.61 in
Size 3.3"
Color Orange
Voltage 125 Volt
Type Single Receptacles
Material Thermoplastic
Applications Industrial
Depth 1.19 in
Height 3.28 in
Country of Origin Mexico
Wire Size 18-0 AWG
Family Brand Name Pass & Seymour
NEMA L520
Certifications FEDSPEC,CULUS
Amperage 20 Amp
Number of Poles 2 Pole
Number of Wires 3
UNSPSC 39121403
Sub Brand Pass & Seymour
