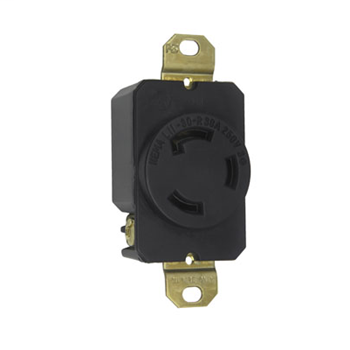

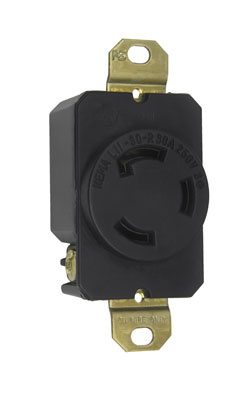

Pass & Seymour L1130-R 30 Amp 250 VAC 3-Phase 3-Pole 3-Wire NEMA L11-30R Impact-Resistant Nylon Locking Single Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$50.15/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # L1130R
North Coast Part # 216315

Features

  • Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength.
  • Face color coding by voltage facilitates locating and mating of proper devices.
  • One piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.
  • Clearly marked NEMA configuration, rating, and third-party listing on each unit's face.
  • Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands.
  • Side and external screw-pressure-plate back wire capability.
  • Accepts #14 - #10 AWG.

Specifications

  • Special Features: Turnlock, locking device, quick thread assembly, rounded back contour, impact & corrosion resistant, new design external cord grips
  • Country Of Origin: MX
  • Certifications: CULUS
  • Phase: 3
  • Amperage: 30 A
  • Color: Black
  • Product Line: Pass & Seymour
  • Standard: UL 498
  • NEMA Rating: L11-30R
  • Voltage: 250.0 V
  • Wire Size: 10-18Awg
  • Number of Wires: 3.0
  • Number of Poles: 3-Way
  • Application Sector: Commercial

Certifications

  • cULus Listed: 140596

Overview

UPC 78500711305
Item Long Description Turnlok Receptacle 3wire 30amp 3phase 250v
GTiN 00785007113051
Width 1.61 in
Size 3.3"
Color Black
Voltage 250 Volt
Type Single Receptacles
Material Thermoplastic
Applications Commercial
Depth 1.28 in
Height 3.28 in
Country of Origin Mexico
Wire Size 10-18 Awg
Family Brand Name Pass & Seymour
NEMA L11-30R
Certifications CULUS
Amperage 30 Amp
Number of Poles 3 Pole
Number of Wires 3.0
UNSPSC 39121403
Sub Brand Pass & Seymour
Number of Phases 3 Phase
