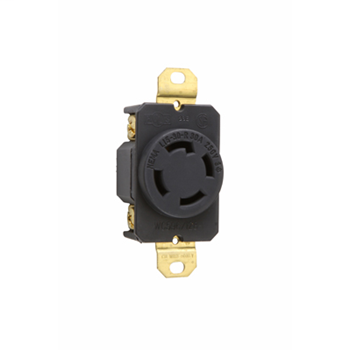

Pass & Seymour L1530-R 30 Amp 250 VAC 3-Phase 3-Pole 4-Wire NEMA L15-30R Impact-Resistant Nylon Locking Single Receptacle

Features

• Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength.
• Face color coding by voltage facilitates locating and mating of proper devices.
• One piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.
• Clearly marked NEMA configuration, rating, and third-party listing on each unit's face.
• Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands.
• Side and external screw-pressure-plate back wire capability.
• Accepts #14 - #10 AWG.

Specifications

General Info

• Type: Single Receptacles
• Number Of Wires: 4

Listing Agencies/Third Party Certifications

• RoHS: Yes
• CSA Standard: Yes
• Federal Spec: Yes
• UL Listing No: 498
• UL Standard: Yes
• UN SPSC: 39121403

Dimensions

• Depth (US): 1.28"
• Height (US): 3.28"
• Width (US): 1.61"

Technical Information

• Amps: 30A
• NEMA Configuration Number: L1530
• Volts: 250V
• Volts (AC): 250

Buy American Act Compliance

• Country Of Origin: MEXICO
• Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

• RoHS Compliant
