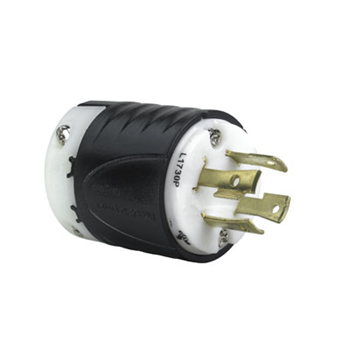

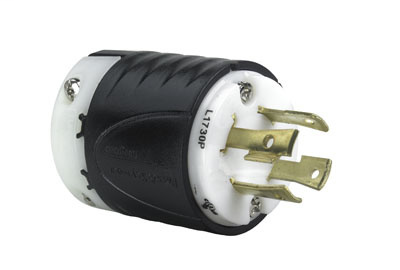

Pass & Seymour L1730-P 30 Amp 600 VAC 3-Phase 3-Pole 4-Wire NEMA L17-30P Black and White Nylon Straight Locking Plug
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$52.67/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # L1730P
North Coast Part # 1093386

Features

  • Quick-thread assembly screws and cord-grip screws come backed-out, ready-to-wire.
  • Industrial-strength, brass alloy plug blades and connector contacts resist heat rise, provide excellent conductivity.
  • Raised ribs provide non-slip gripping profile for turning to lock and unlock.
  • Double dovetail design provides superior protection against cord pull-out forces.
  • Impact- and corrosion-resistant durable nylon 6 shell material.
  • Rounded back contour reduces snags and hang-ups on the job site.
  • Scallop shell design provides non-slip gripping surface for insertion and withdrawal.
  • Visible stamped NEMA configuration and device rating.
  • New-design external cord grips provide visible assurance of safe and proper cord retention.
  • Integral flexible rubber cord grommet conforms to and seals around SO cord to provide protection from oils, water, or chips entering wiring chamber.

Specifications

  • Phase: 3
  • Amperage: 30 A
  • Standard: UL 498
  • NEMA Rating: L17-30P
  • Wire Size: 0-18Awg
  • Voltage: 600.0 V
  • Number of Wires: 4.0
  • Number of Poles: 3-Way
  • Application Sector: Industrial
  • Certifications: CULUS
  • Color: Black
  • Country Of Origin: MX
  • Product Line: Pass & Seymour
  • Special Features: Corrosion resistant turnlock locking device

Certifications

  • cULus Listed: 146159

Overview

GTiN 00785007173048
Length 3.75 in
Size 3.8"
Color Black
Voltage 600 Volt
Type Plug
Diameter 2.20 in
Material Thermoplastic
Conductor Size 0-18 AWG
Applications Industrial
Country of Origin Mexico
Wire Size 18-0 AWG
Family Brand Name Pass & Seymour
NEMA L17-30P
Certifications CULUS
Amperage 30 Amp
Blade Dimensions 3.8 in
Number of Poles 3 Pole
Number of Wires 4
UNSPSC 39121403
Sub Brand Pass & Seymour
Product UPC 78500717304
Number of Phases 3 Phase
