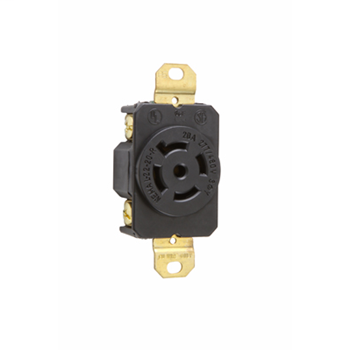

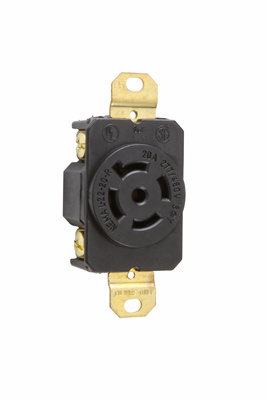

Pass & Seymour L2220-R 20 Amp 277/480 VAC 3-Phase 4-Pole 5-Wire NEMA L22-20R Impact-Resistant Nylon Locking Single Receptacle
$57.42/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # L2220R
North Coast Part # 824884

Features

  • Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength.
  • Face color coding by voltage facilitates locating and mating of proper devices.
  • One piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.
  • Clearly marked NEMA configuration, rating, and third-party listing on each unit's face.
  • Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands.
  • Side and external screw-pressure-plate back wire capability.
  • Accepts #14 - #10 AWG.

Specifications

General Info

  • Type: Single Receptacles
  • Number Of Wires: 5

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Standard: Yes
  • Federal Spec: Yes
  • UL Listing No: 498
  • UL Standard: Yes
  • UN SPSC: 39121403

Dimensions

  • Depth (US): 1.19"
  • Height (US): 3.28"
  • Width (US): 1.61"

Technical Information

  • Amps: 20A
  • NEMA Configuration Number: L2220
  • Volts: 277/480V
  • Volts (AC): 277/480

Buy American Act Compliance

  • Country Of Origin: MEXICO
  • Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Overview

UPC 78500722205
GTiN 00785007222050
Width 1.61 in
Size 3.3"
Color Black/White
Voltage 277 Volt
Type Impact and Corrosion-Resistant
Material Thermoplastic
Applications For Commercial Use
Depth 1.19 in
Height 3.28 in
Country of Origin Mexico
Wire Size 10-18 Awg
Family Brand Name Pass & Seymour
NEMA L2220
Certifications CULUS
Amperage 20 Amp
Number of Poles 4 Pole
Number of Wires 5
UNSPSC 39121403
Sub Brand Turnlok
Conductor Size 18-10 AWG
