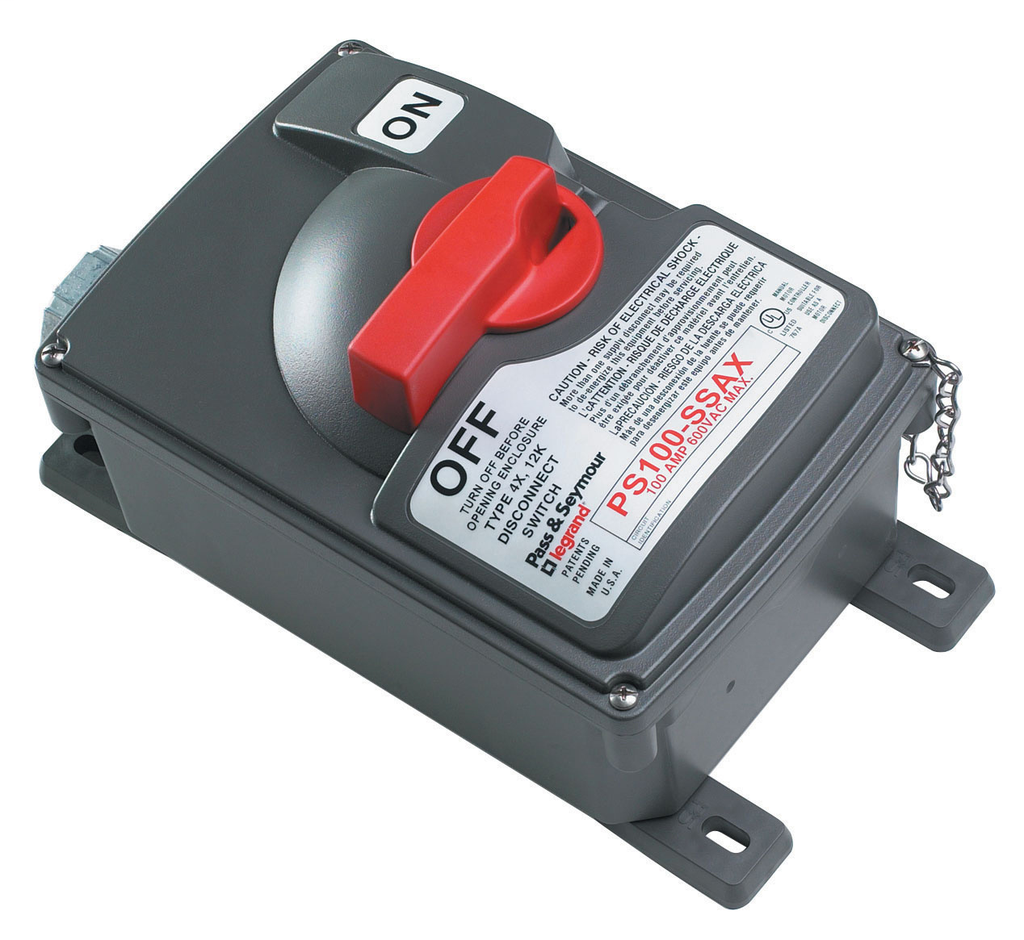

Pass & Seymour PS100-SSAX 600 VAC 100 Amp 50 HP 3-Phase NEMA 4X/12 Thermoplastic Non-Fusible Safety Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$791.82/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # PS100SSAX
North Coast Part # 597627

Features

  • Compact design fits in most I-beams to provide mounting versatility, easy access, and reduced possibility of impact damage.
  • Nonconductive, watertight, corrosion-, heat-, and impact-resistant thermoplastic enclosure ensures NEMA 4X and 12 ratings. Withstands the harshest industrial environments.
  • Corrosion-resistant, stainless steel captive screws speed installation, minimize risk of lost parts, and withstand abuse.
  • Adjustable mounting feet can be moved to center of unit for instant strut- or pole-mounting without special brackets or harnesses.
  • Durable, stainless steel coverretaining chain makes installation and maintenance more convenient.
  • Heavy-duty, ergonomic switch handle meets OSHA Lockout/Tagout provisions and provides plenty of grip for sure, easy operation.
  • Black/red color coding and high-visibility ON/OFF markings clearly indicate status from a distance and at any visual angle.
  • Switch entry into the enclosure is offset to the side and sealed to provide enhanced water resistance.
  • Bottom and top wiring access options. No unnecessary openings to compromise water resistance.
  • Top mount auxiliary contact enables additional control functions or signal lights.
  • Certified for IP69 applications.

Specifications

  • Special Features: Compact design fits in most I-beams to provide mounting versatility, easy access, and reduced possibility of impact damage. Nonconductive, watertight, corrosion-, heat-, and impact-resistant Valox┬« enclosure ensures NEMA 4X and 12 ratings and withstands the harshest industrial environments. Corrosion-resistant, stainless steel captive screws speeds installation, minimize risk of lost parts, and withstand abuse. Adjustable mounting feet can be moved to center of unit for instant strut- or pole-mounting without special brackets or harnesses. Durable, stainless steel cover-retaining chain makes installation and maintenance more convenient. Heavy-duty, ergonomic switch handle meets OSHA Lockout/Tagout requirements and provides plenty of grip for sure, easy operation. Black/red color coding and high-visibility ON/OFF markings clearly indicate status from a distance and at any visual angle. Switch entry into the enclosure is offset to the side and sealed to provide enhanced water resistance. Bottom and top wiring access options. No unnecessary openings to compromise water resistance. Top mount auxiliary contact enables additional control functions or signal lights.
  • Country Of Origin: US
  • Certifications: CULUS
  • Amperage: 100.0 A
  • Standard: UL, CSA
  • Color: Gray
  • Product Line: Pass & Seymour
  • Voltage: 600.0 V
  • Environmental Conditions: Moisture Resistance: Per UL50, Section 35, NEMA Enclosure Type 4X (watertight, hosedown), Type 12K (dusttight, falling dirt), and IP67 suitability: Flammability: UL94 5VA and VO Classification: UV Resistance: All enclosure materials are UV stable
  • Connection: Hard Wired
  • Number of Poles: 4-Way
  • Frequency Rating: 60.0 Hz
  • Application Sector: Industrial
  • Contact Rating: 10A @ 600VAC
  • Action: Motor Disconnect Switch
  • Contact Configuration: 1 N.O. & 1 N.C.

Certifications

  • cULus Listed: 31169

Overview

UPC 78500715023
GTiN 00785007150230
Size 7.19 L x 6.31 W x 12.38 H In
Operating Temperature Maximum continuous: +60C; Minimum continuous: -50C without impact Deg
Voltage 600 Volt
Type Non-Fusible Safety Switches
Material Valox 357
Applications Industrial
Country of Origin USA
Family Brand Name Pass & Seymour
Certifications CULUS
Buy American Compliant Yes
TC Connection Hard Wired
Actuator Switch Handle
Contact Configuration 1 N.O. & 1 N.C.
Amperage 100 Amp
Contact Rating 10A @ 600VAC
Number of Poles 4 Pole
Enclosure NEMA Type 4X (watertight, hosedown), Type 12K (dusttight, falling dirt); IP67 Suitability
Operating Cycles 10k
UNSPSC 39121403
Sub Brand Pass & Seymour
Color Gray
