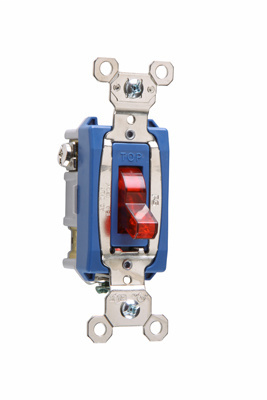

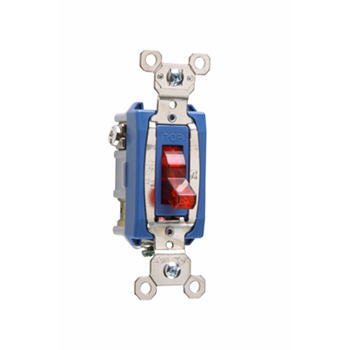

Pass & Seymour PS15AC1-RPL 15 Amp 120 VAC 1-Pole Red Glass Reinforced Nylon Screw Mounting Pilot Lighted Toggle Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$27.13/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # PS15AC1RPL
North Coast Part # 551042

Features

  • One-piece toggle molded from chemical-,impact-,and heat-resistant thermoplastic.
  • Impact- and chemical-resistant cover.
  • Glass-reinforced, chemical-resistant thermoplastic back body for durability, strength, and resistance to harsh cleaners.
  • One-piece nickel-plated brass strap for superior corrosion-resistance.
  • Auto-ground clip assures positive ground.
  • Cam control and spring actuator for positive ''makes and breaks.''
  • Heavy-duty bumpers for quiet, smooth operation.
  • Locking support provides resistance to face and back body separation.
  • Oversized silver-alloy contacts for long life and better heat dissipation.
  • Side and external screw-pressure-plate back wire with #14 - #10 AWG copper or copper-clad wire.
  • Heavy-duty, brass alloy, one-piece contact arm virtually eliminates contact bounce.
  • Grounding terminal is standard with screw-pressure plate back wire.
  • Shallow design for easier installation.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

  • Standard: UL20
  • Amperage: 15.0 A
  • Actuator: Toggle
  • Voltage: 120.0 V
  • Number of Poles: Single Pole
  • Contact Rating: 20Amp, 120/277V
  • Application Sector: Residential/Commercial
  • Special Features: Pilot light switch, back & side wire, red light when on
  • Certifications: FEDSPEC,CULUS
  • Color: Red
  • Country Of Origin: MX
  • Product Line: Pass & Seymour

Certifications

  • cULus Listed: 140597
  • Federal Spec Listed

Overview

GTiN 00785007195804
Width 1.320 in
Size 3.3"
Color Brown
Voltage 120 Volt
Type Pilot Lighted
Material Thermoplastic
Applications Commercial/Residential
Depth 1.073 in
Height 3.281 Inch
Grade Industrial
Country of Origin Mexico
Family Brand Name Pass & Seymour
Certifications CULUS,FEDSPEC
Actuator Toggle
Duty Rating Extra Heavy Duty
Amperage 15 Amp
Blade Dimensions 3.3 in
Contact Rating 20Amp, 120/277V
Number of Poles 1 Pole
Action Off
UNSPSC 39121507
Sub Brand Decora
Product UPC 78500719580
