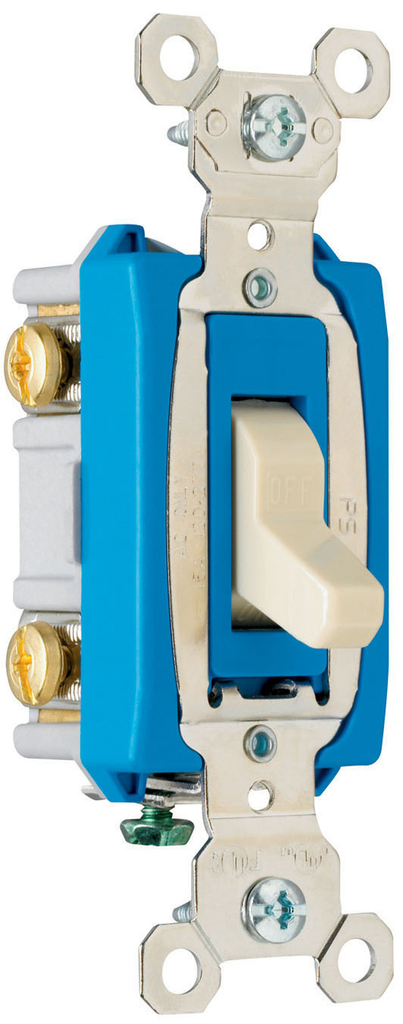

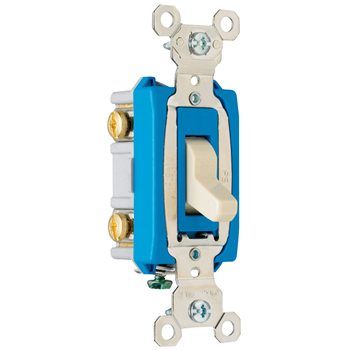

Pass & Seymour PS15AC2-I 15 Amp 120/277 VAC 2-Pole Ivory Glass Reinforced Nylon Screw Mounting Toggle Switch
Product image thumbnail 0
Product image thumbnail 1
$27.62/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # PS15AC2I
North Coast Part # 551076

Features

  • External screw-pressure-plate back and side wired. Accepts #14 - #10 AWG copper or copper-clad conductors.
  • Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce.
  • Cam controls fast ''make'' and positive ''break'' to minimize arcing.
  • Heavy-duty bumper pads for quiet operation.
  • High strength thermoplastic polycarbonate toggle.
  • Back body made of glass-reinforced nylon.
  • Locking support provides resistance to face and back body separation.
  • Oversized silver alloy contacts for long life and better heat dissipation.
  • Grounding terminal is standard.
  • Shallow design for ease of istallation.
  • Strap nickel-plated steel with integral ground.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

  • Certifications: CULUS,FEDSPEC
  • Color: Ivory
  • Country Of Origin: MX
  • Product Line: Pass & Seymour
  • Standard: UL 20
  • Amperage: 15.0 A
  • Wattage: 2.0 W
  • Voltage: 120.0 V
  • Application Sector: Industrial
  • Number of Poles: Double Pole
  • Closed Contact Resistance: Toggle
  • Contact Rating: 15amp, 120/277vac
  • Special Features: High strength toggle, heavy duty toggle bumpers, locking support

Certifications

  • cULus Listed: 140597
  • Federal Spec Listed

Overview

GTiN 00785007195071
Width 1.320 in
Size 3.3"
Color Ivory
Voltage 120 Volt
Type Toggle
Material Thermoplastic
Applications Industrial
Depth 1.073 in
Height 3.281 Inch
Grade Industrial
Country of Origin Mexico
Wattage 2 Watt
Family Brand Name Pass & Seymour
Certifications CULUS,FEDSPEC
Actuator Toggle
Duty Rating Extra Heavy Duty
Amperage 15 Amp
Blade Dimensions 3.3 in
Contact Rating 15amp, 120/277vac
Number of Poles 2 Pole
UNSPSC 39121507
Sub Brand Pass & Seymour
Product UPC 78500719507
