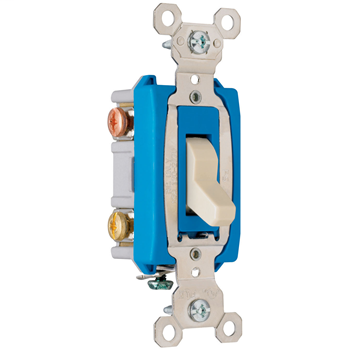

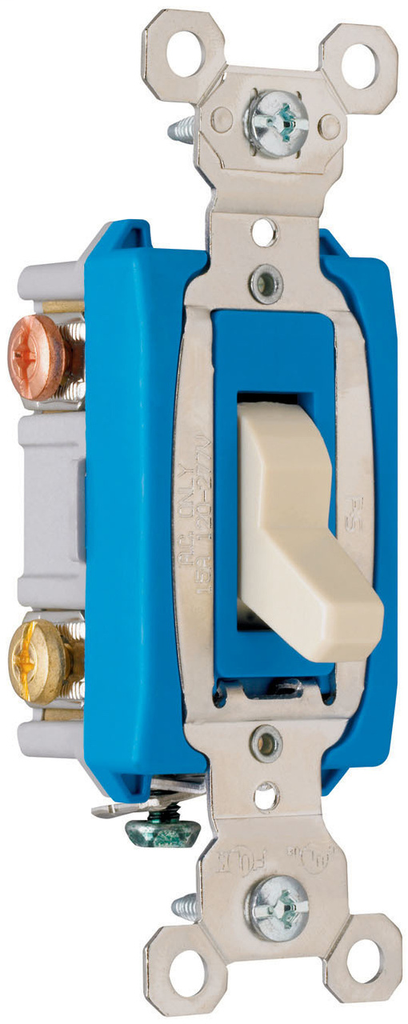

Pass & Seymour PS15AC3-I 15 Amp 120/277 VAC 3-Way Ivory Glass Reinforced Nylon Screw Mounting Toggle Switch

Features

• One-piece toggle molded from chemical-,impact-,and heat-resistant thermoplastic.
• Impact- and chemical-resistant cover.
• Glass-reinforced, chemical-resistant thermoplastic back body for durability, strength, and resistance to harsh cleaners.
• One-piece nickel-plated brass strap for superior corrosion-resistance.
• Auto-ground clip assures positive ground.
• Cam control and spring actuator for positive "makes and breaks."
• Heavy-duty bumpers for quiet, smooth operation.
• Locking support provides resistance to face and back body separation.
• Oversized silver-alloy contacts for long life and better heat dissipation.
• Side and external screw-pressure-plate back wire with #14 - #10 AWG copper or copper-clad wire.
• Heavy-duty, brass alloy, one-piece contact arm virtually eliminates contact bounce.
• Grounding terminal is standard with screw-pressure plate back wire.
• Shallow design for easier installation.
• For covering patents, see www.legrand.us/patents.
• For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

General Info

• Color: Ivory
• Type: Toggle
• Duty: Extra Heavy Duty
• Number Of Poles: 3-way

Listing Agencies/Third Party Certifications

• RoHS: Yes
• CSA Listing Info: C22.2 111
• CSA Standard: Yes
• Federal Spec: Yes
• UL Listing No: 20
• UL Standard: Yes
• UN SPSC: 39121507

Dimensions

• Depth (US): 1.073"
• Height (US): 3.281"
• Width (US): 1.320"

Technical Information

• Amps: 15A
• Volts: 120/277VAC
• Volts (AC): 120/277
• Grade Type: Industrial

Buy American Act Compliance

• Country Of Origin: MEXICO
• Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

• RoHS Compliant
