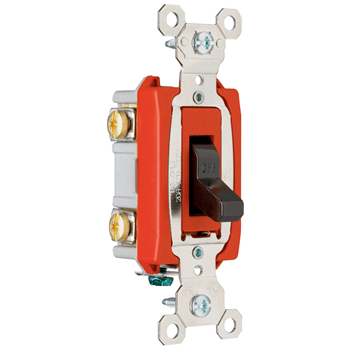

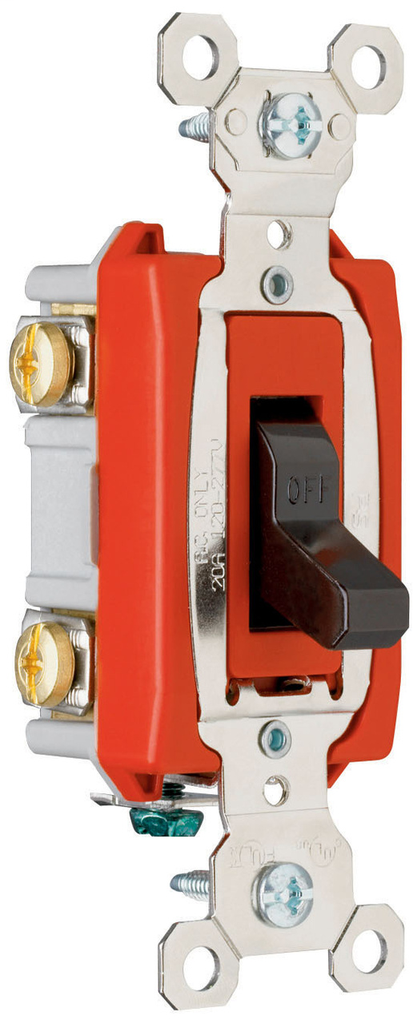

Pass & Seymour PS20AC2-HP 20 Amp 120/277 VAC 1-Phase 2-Pole Toggle Switch
Product image thumbnail 0
Product image thumbnail 1
$35.09/ea
In Stock | 12 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # PS20AC2HP
North Coast Part # 213546

Features

  • High horsepower rating, up to 3HP for heavy-duty applications. Compact design provides ease of installation. Box lug terminals. Single piece moveable and stationary contact arms with oversized silver cadmium buttons provides excellent continuity and long life. Made in USA. Wire pockets and thick wall arc barriers. Cold-rolled steel NEMA 3R enclosure with polyester urethane finish conforms to OSHA lockout requirements. Type 3R enclosure has 2-1/2 inch, 3/4 inch, and 1 inch concentric knockouts on bottom. Accepts #4 AWG. cULus listed.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

  • Standard: UL 20
  • Amperage: 20.0 A
  • Wattage: 2.0 W
  • Voltage: 120.0 V
  • Application Sector: Industrial
  • Number of Poles: Double Pole
  • Certifications: FEDSPEC,CULUS
  • Color: Brown
  • Country Of Origin: MX
  • Product Line: Pass & Seymour
  • Closed Contact Resistance: Toggle
  • Contact Rating: 20amp, 120/277vac
  • Special Features: High strength toggle, heavy duty toggle bumpers, locking support

Certifications

  • Federal Spec Listed
  • cULus Listed: 140597

Categories

Overview

GTiN 00785007195965
Width 1.320 in
Size 3.3"
Color Brown
Voltage 120 Volt
Type Heavy Duty
Material Thermoplastic
Applications Industrial
Depth 1.073 in
Height 3.281 Inch
Grade Industrial
Country of Origin Mexico
Wattage 2 Watt
Family Brand Name Pass & Seymour
Certifications CULUS,FEDSPEC
Actuator Toggle
Amperage 20 Amp
Blade Dimensions 3.3 in
Contact Rating 20amp, 120/277vac
Number of Poles 2 Pole
Sub Brand Pass & Seymour
Product UPC 78500719596
