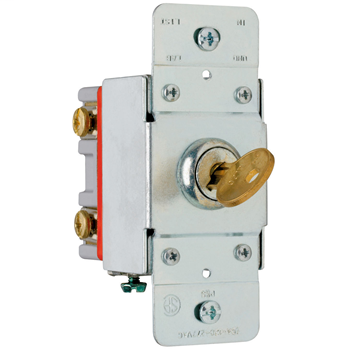

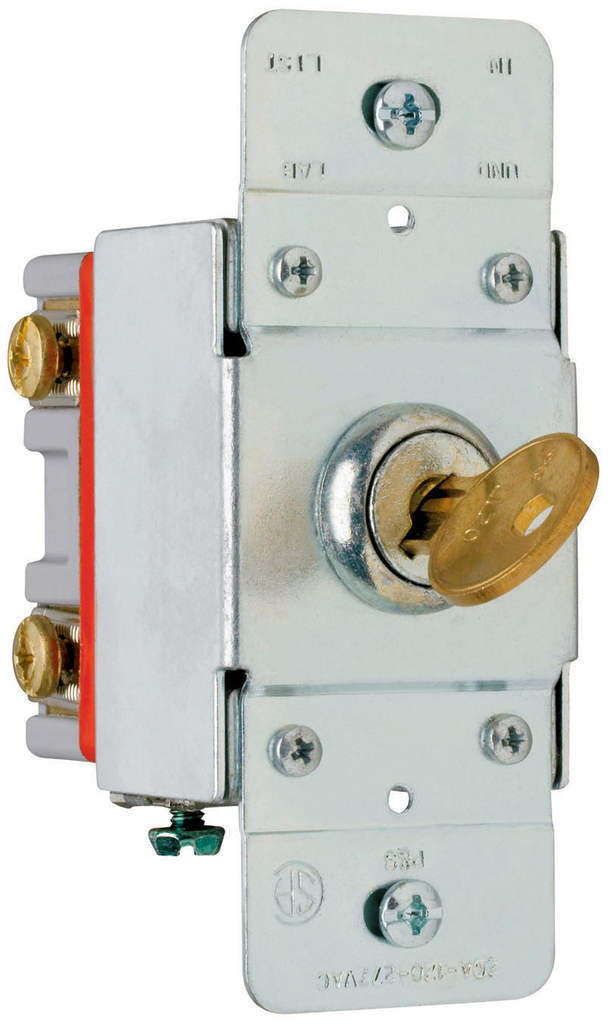

Pass & Seymour PS20AC2-KL 20 Amp 120/277 VAC 2-Pole Back and Side Wire Screw Mount Lock Switch
$142.32/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # PS20AC2KL
North Coast Part # 825832

Features

  • Back and side wired. Accepts #14 - #10 AWG. Operated by cam lock for maximum security in critical areas. Recommended for tamper-proof installation in schools, public housing, trailer parks, freight yards, etc. Uses same key as Cat.# 4600 cast enclosure. Key can be removed in both positions.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click
  • here

Specifications

General Info

  • Type: Security Switches
  • Duty: Extra Heavy Duty
  • Number Of Poles: 2

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Listing Info: C22.2 55
  • CSA Standard: Yes
  • Federal Spec: Yes
  • UL Listing No: 20
  • UL Standard: Yes
  • UN SPSC: 39121507

Dimensions

  • Depth (US): 1.073"
  • Height (US): 3.281"
  • Width (US): 1.320"

Technical Information

  • Amps: 20A
  • Volts: 120/277VAC
  • Volts (AC): 120/277
  • Grade Type: Specification

Buy American Act Compliance

  • Country Of Origin: MEXICO
  • Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Overview

UPC 78500719566
GTiN 00785007195668
Width 1.320 in
Size 3.3"
Color Gray
Voltage 120 Volt
Type Security Switches
Applications Industrial
Depth 1.073 in
Height 3.281 in
Grade Specification
Country of Origin Mexico
Wattage 2 Watt
Family Brand Name Pass & Seymour
Certifications CULUS,FEDSPEC
Duty Rating Extra Heavy Duty
Amperage 20 Amp
Contact Rating 20amp, 120/277vac
Number of Poles 2 Pole
UNSPSC 39121507
Sub Brand Pass & Seymour
