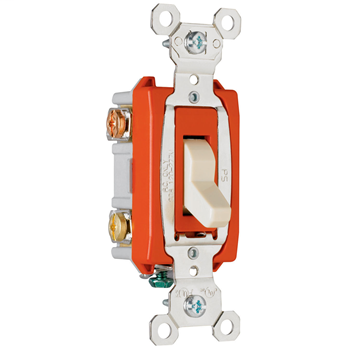

Pass & Seymour PS20AC3 20 Amp 120/277 VAC 3-Way Brown Glass Reinforced Nylon Screw Mounting Toggle Switch
$40.40/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # PS20AC3
North Coast Part # 544270

Features

  • One-piece toggle molded from chemical-,impact-,and heat-resistant thermoplastic.
  • Impact- and chemical-resistant cover.
  • Glass-reinforced, chemical-resistant thermoplastic back body for durability, strength, and resistance to harsh cleaners.
  • One-piece nickel-plated brass strap for superior corrosion-resistance.
  • Auto-ground clip assures positive ground.
  • Cam control and spring actuator for positive "makes and breaks."
  • Heavy-duty bumpers for quiet, smooth operation.
  • Locking support provides resistance to face and back body separation.
  • Oversized silver-alloy contacts for long life and better heat dissipation.
  • Side and external screw-pressure-plate back wire with #14 - #10 AWG copper or copper-clad wire.
  • Heavy-duty, brass alloy, one-piece contact arm virtually eliminates contact bounce.
  • Grounding terminal is standard with screw-pressure plate back wire.
  • Shallow design for easier installation.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

General Info

  • Color: Brown
  • Type: Toggle
  • Duty: Extra Heavy Duty
  • Number Of Poles: 3-way

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Listing Info: C22.2 111
  • CSA Standard: Yes
  • Federal Spec: Yes
  • UL Listing No: 20
  • UL Standard: Yes
  • UN SPSC: 39121507

Dimensions

  • Depth (US): 1.073"
  • Height (US): 3.281"
  • Width (US): 1.320"

Technical Information

  • Amps: 20A
  • Volts: 120/277VAC
  • Volts (AC): 120/277
  • Grade Type: Industrial

Buy American Act Compliance

  • Country Of Origin: MEXICO
  • Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Overview

UPC 78500719536
GTiN 00785007195361
Width 1.320 in
Size 3.3"
Color Brown
Voltage 120 Volt
Type Heavy Duty, 3-Way
Applications Commercial/Residential
Depth 1.073 in
Height 3.281 in
Grade Industrial Specification
Country of Origin Mexico
Family Brand Name Pass & Seymour
Certifications CULUS,FEDSPEC
Actuator Toggle
Duty Rating Extra Heavy Duty
Amperage 20 Amp
Contact Rating 20Amp, 120/277V
Number of Poles 3 Pole
Action TP
UNSPSC 39121507
Sub Brand Pass & Seymour
Material Nylon Body, Thermoplastic Polycarbonate Toggle
Blade Dimensions 3.3 in
