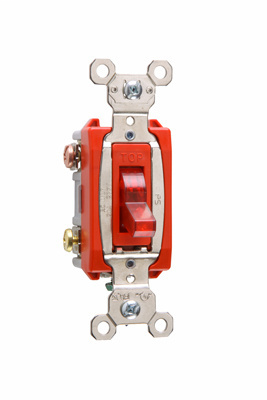

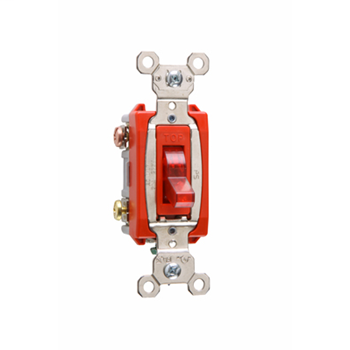

Pass & Seymour PS20AC3-RPL7 20 Amp 277 VAC 3-Way Red Glass Reinforced Nylon Screw Mounting Pilot Lighted Toggle Switch
Product image thumbnail 0
Product image thumbnail 1
$82.01/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # PS20AC3RPL7
North Coast Part # 546912

Features

  • External screw-pressure-plate back and side wired. Accepts #14 - #10 AWG copper or copper-clad conductors.
  • Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce.
  • Cam controls fast ''make'' and positive ''break'' to minimize arcing.
  • Heavy-duty bumper pads for quiet operation.
  • High strength thermoplastic polycarbonate toggle.
  • Back body made of glass-reinforced nylon.
  • Locking support provides resistance to face and back body separation.
  • Oversized silver alloy contacts for long life and better heat dissipation.
  • Grounding terminal is standard.
  • Shallow design for ease of installation.
  • Strap nickel-plated steel with integral ground.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

  • Certifications: CULUS,FEDSPEC
  • Color: Red
  • Country Of Origin: MX
  • Product Line: Pass & Seymour
  • Standard: UL 20
  • Amperage: 20.0 A
  • Wattage: 3.0 W
  • Voltage: 120.0 V
  • Number of Poles: 3-Way
  • Application Sector: Industrial
  • Closed Contact Resistance: Toggle
  • Contact Rating: 20amp, 120/277vac
  • Special Features: High strength toggle, heavy duty toggle bumpers, locking support

Certifications

  • Federal Spec Listed
  • cULus Listed: 140597

Overview

GTiN 00785007195927
Width 1.320 in
Size 3.3"
Color Red
Voltage 120 Volt
Type Pilot Lighted
Applications Industrial
Depth 1.073 in
Height 3.281 Inch
Grade Industrial
Country of Origin Mexico
Wattage 3 Watt
Family Brand Name Pass & Seymour
Certifications CULUS,FEDSPEC
Duty Rating Extra Heavy Duty
Amperage 20 Amp
Contact Rating 20amp, 120/277vac
Number of Poles 3 Pole
UNSPSC 39121507
Sub Brand Pass & Seymour
Product UPC 78500719592
