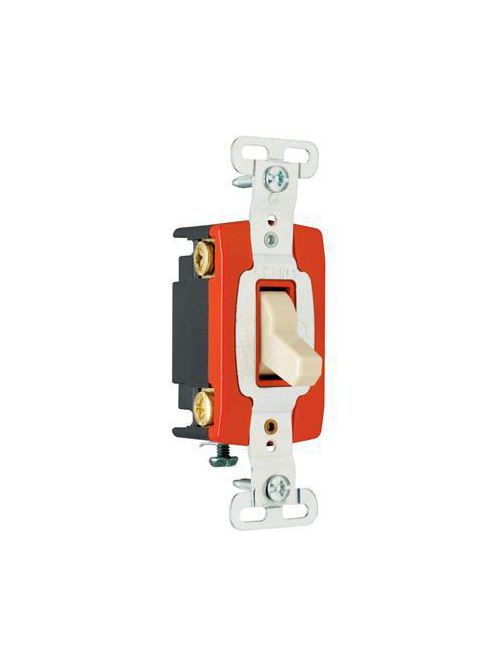

Pass & Seymour PS20AC4 20 Amp 120/277 VAC 4-Way Brown Glass Reinforced Nylon Screw Mounting Toggle Switch

Features

• External screw-pressure-plate back and side wired. Accepts #14 - #10 AWG copper or copper-clad conductors.
• Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce.
• Cam controls fast "make" and positive "break" to minimize arcing.
• Heavy-duty bumper pads for quiet operation.
• High strength thermoplastic polycarbonate toggle.
• Back body made of glass-reinforced nylon.
• Locking support provides resistance to face and back body separation.
• Oversized silver alloy contacts for long life and better heat dissipation.
• Grounding terminal is standard.
• Shallow design for ease of istallation.
• Strap nickel-plated steel with integral ground.
• Auto-ground clip assures positive ground.
• For covering patents, see www.legrand.us/patents.
• For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

General Info

• Color: Brown
• Type: Toggle
• Duty: Extra Heavy Duty
• Number Of Poles: 4-way

Listing Agencies/Third Party Certifications

• RoHS: Yes
• CSA Listing Info: C22.2 111
• CSA Standard: Yes
• Federal Spec: Yes
• UL Listing No: 20
• UL Standard: Yes
• UN SPSC: 39121507

Dimensions

• Depth (US): 1.073"
• Height (US): 3.281"
• Width (US): 1.320"

Technical Information

• Amps: 20A
• Volts: 120/277VAC
• Volts (AC): 120/277
• Grade Type: Industrial

Buy American Act Compliance

• Country Of Origin: MEXICO
• Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

• RoHS Compliant
