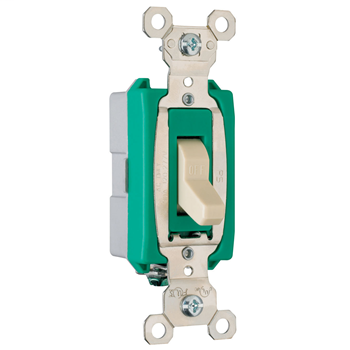

Pass & Seymour PS30AC1-I 30 Amp 120/277 VAC 1-Pole Ivory Glass Reinforced Nylon Screw Mounting Toggle Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$33.97/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # PS30AC1I
North Coast Part # 13897

Features

  • External screw-pressure-plate back and side wired. Accepts #14 - #10 AWG copper or copper-clad conductors.
  • Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce.
  • Cam controls fast ''make'' and positive ''break'' to minimize arcing.
  • Heavy-duty bumper pads for quiet operation.
  • High strength thermoplastic polycarbonate toggle.
  • Back body made of glass-reinforced nylon.
  • Locking support provides resistance to face and back body separation.
  • Oversized silver alloy contacts for long life and better heat dissipation.
  • Grounding terminal is standard.
  • Shallow design for ease of istallation.
  • Strap nickel-plated steel with integral ground.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

  • Country Of Origin: MX
  • Standard: UL20
  • Action: SP
  • Certifications: CULUS,FEDSPEC
  • Amperage: 30.0 A
  • Color: Ivory
  • Actuator: Toggle
  • Product Line: Pass & Seymour
  • Voltage: 120.0 V
  • Number of Poles: Single Pole
  • Contact Rating: 30Amp, 120/277V
  • Application Sector: Residential/Commercial
  • Special Features: Heavy duty switch, back & side wire, with lock

Certifications

  • Federal Spec Listed
  • cULus Listed: 140597

Overview

UPC 78500719553
Item Long Description 1pole Toggle Switch, Back & Side Wire, 30amp 120/277volt, Ivory
GTiN 00785007195538
Width 1.320 in
Size 3.3"
Color Ivory
Voltage 120 Volt
Type Toggle
Applications Commercial/Residential
Depth 1.073 in
Height 3.281 in
Grade Industrial
Country of Origin Mexico
Family Brand Name Pass & Seymour
Certifications CULUS,FEDSPEC
Actuator Toggle
Duty Rating Extra Heavy Duty
Amperage 30 Amp
Contact Rating 30Amp, 120/277V
Number of Poles 1 Pole
Action SP
UNSPSC 39121507
Sub Brand Pass & Seymour
