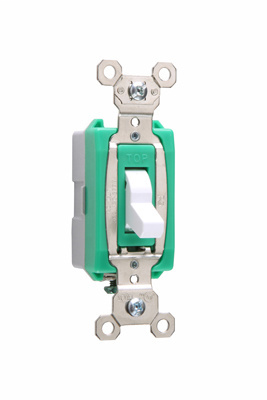

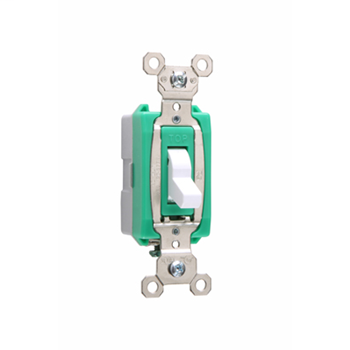

Pass & Seymour PS30AC1-W 30 Amp 120/270 VAC 1-Pole White Glass Reinforced Nylon Screw Mounting Toggle Switch
$44.53/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # PS30AC1W
North Coast Part # 932992

Features

  • External screw-pressure-plate back and side wired. Accepts #14 - #10 AWG copper or copper-clad conductors.
  • Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce.
  • Cam controls fast "make" and positive "break" to minimize arcing.
  • Heavy-duty bumper pads for quiet operation.
  • High strength thermoplastic polycarbonate toggle.
  • Back body made of glass-reinforced nylon.
  • Locking support provides resistance to face and back body separation.
  • Oversized silver alloy contacts for long life and better heat dissipation.
  • Grounding terminal is standard.
  • Shallow design for ease of installation.
  • Strap nickel-plated steel with integral ground.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

General Info

  • Color: White
  • Type: Toggle
  • Duty: Extra Heavy Duty
  • Number Of Poles: 1

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Listing Info: C22.2 111
  • CSA Standard: Yes
  • Federal Spec: Yes
  • UL Listing No: 20
  • UL Standard: Yes
  • UN SPSC: 39121507

Dimensions

  • Depth (US): 1.073"
  • Height (US): 3.281"
  • Width (US): 1.320"

Technical Information

  • Amps: 30A
  • Volts: 120/277VAC
  • Volts (AC): 120/270
  • Grade Type: Industrial

Buy American Act Compliance

  • Country Of Origin: MEXICO
  • Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Overview

UPC 78500770475
GTiN 00785007704754
Width 1.320 in
Size 3.3"
Color White
Voltage 277 Volt
Type Toggle
Applications Industrial
Depth 1.073 in
Height 3.281 in
Grade Industrial
Country of Origin Mexico
Wattage 1 Watt
Family Brand Name Pass & Seymour
Certifications CULUS,FEDSPEC
Duty Rating Extra Heavy Duty
Amperage 30 Amp
Contact Rating 30amp, 120/277vac
Number of Poles 1 Pole
UNSPSC 39121507
Sub Brand Pass & Seymour
