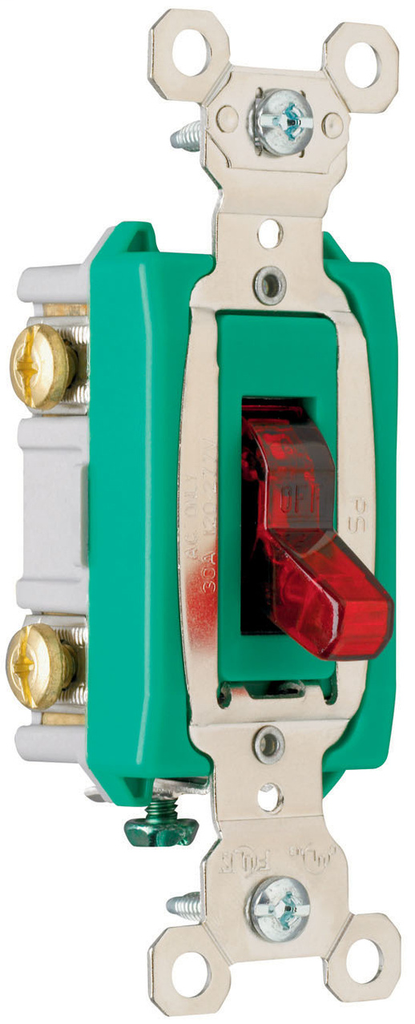

P&S PS30AC2RPL 30A 120/277VAC B+S W

Features

• External screw-pressure-plate back and side wired. Accepts #14 - #10 AWG copper or copper-clad conductors.
• Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce.
• Cam controls fast ''make'' and positive ''break'' to minimize arcing.
• Heavy-duty bumper pads for quiet operation.
• High strength thermoplastic polycarbonate toggle.
• Back body made of glass-reinforced nylon.
• Locking support provides resistance to face and back body separation.
• Oversized silver alloy contacts for long life and better heat dissipation.
• Grounding terminal is standard.
• Shallow design for ease of installation.
• Strap nickel-plated steel with integral ground.
• Auto-ground clip assures positive ground.
• For covering patents, see www.legrand.us/patents.
• For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

• Country Of Origin: MX
• Standard: UL 20
• Amperage: 30.0 A
• Certifications: CULUS,FEDSPEC
• Color: Red
• Wattage: 2.0 W
• Product Line: Pass & Seymour
• Voltage: 120.0 V
• Application Sector: Industrial
• Number of Poles: Double Pole
• Closed Contact Resistance: Toggle
• Contact Rating: 30amp, 120/277vac
• Special Features: High strength toggle, heavy duty toggle bumpers, locking support

Certifications

• cULus Listed: 140597
• Federal Spec Listed
