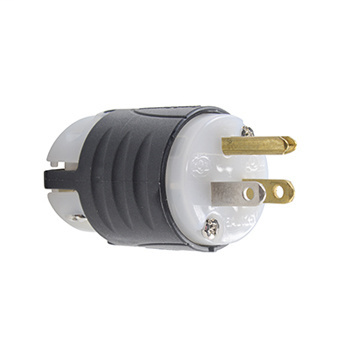

Pass & Seymour PS5266-XGCM 15 Amp 125 VAC 2-Pole 3-Wire NEMA 5-15P Black and White Nylon Polarized Straight Blade Plug
$28.23/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # PS5266XGCM
North Coast Part # 818200

Features

  • Integral indication of ground continuity and power status. Continuous monitoring enhances personnel safety and adds convenience.
  • Dual, bright LED indicators with 360 degree visibility. Green LEDs indicate proper ground continuity and power status. Red LEDs indicate ground continuity loss or reversed polarity. No LED indicates open hot, open neutral, or hot to ground cross. For 250V configurations: Hot to ground cross will be indicated by a green and red LED.
  • Chemical- and impact-resistant nylon housing features horizontal, easy-grip ribs on back body.
  • Exclusive two-piece cord grip accepts a wide range of cord widths. Provides more consistent pressure for superior conductor retention.
  • Internal dust shield keeps terminals free of contaminants.
  • Recessed cord-grip screw reduces screwdriver slippage, improves safety. Quick-thread tri-drive assembly and cord-grip screws come backed-out and ready-to-wire.
  • Color-coded terminal screws are positioned on the same plane and backed-out for fast installation.
  • Industrial-strength, brass alloy plug blades and connector contacts resist heat rise, provide excellent conductivity.
  • For covering patents, see www.legrand.us/patents.
  • Add an EHU15AN for angled applications.

Specifications

General Info

  • Color: White, Black

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Standard: No
  • CUL Listing No: No
  • cULus: Yes
  • cURus: No
  • Federal Spec: Yes
  • UL Listing No: No
  • UN SPSC: 39121402
  • UR: No

Dimensions

  • Depth (US): 2.791"
  • Diameter (US): 1.358"

Technical Information

  • Amps: 15A
  • Volts (AC): 125
  • Grade Type: Specification

Buy American Act Compliance

  • Country Of Origin: MEXICO
  • Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Overview

UPC 78500723720
GTiN 00785007237207
Size 2.8"
Color Black,White
Voltage 125 Volt
Type Plug
Diameter 1.358 in
Material Nylon
Conductor Size 0-14 AWG
Applications Industrial
Depth 2.791 in
Grade Specification
Country of Origin Mexico
Wire Size 14-0 AWG
Family Brand Name Pass & Seymour
Certifications CULUS,FEDSPEC
Amperage 15 Amp
Blade Dimensions 2.8 in
Number of Poles 2 Pole
Number of Wires 3
UNSPSC 39121402
Sub Brand Pass & Seymour
