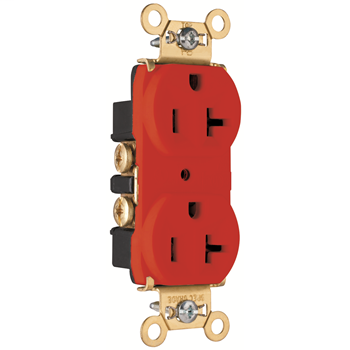

Pass & Seymour PS5362-RED 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R Red Nylon Face PVC Body Heavy Duty Duplex Receptacle
$44.70/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # PS5362RED
North Coast Part # 494675

Features

  • Heavy-duty, brass strap for added strength and ground conductivity.
  • .032 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Strap tabs wrap around face to prevent strap from separating from face and back body.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • High strength nylon face.
  • Internal screw-pressure-plate back and side wired to accept #14 and #10 AWG stranded or solid copper or copper-clad conductors.
  • Eight back wire holes.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

General Info

  • Color: Red
  • Type: Receptacles
  • Duty: Heavy Duty
  • Special Features: Back,Side Wire

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Listing Info: C22.2 No. 42
  • CSA Standard: Yes
  • Federal Spec: Yes
  • UL Listing No: UL498
  • UL Standard: Yes
  • UN SPSC: 39121406
  • UR: No

Dimensions

  • Depth (US): .780"
  • Height (US): 3.281"
  • Width (US): 1.322"

Technical Information

  • Amps: 20A
  • Volts: 125V
  • Volts (AC): 125
  • Capacity: Duplex
  • Grade Type: Specification

Buy American Act Compliance

  • Country Of Origin: MEXICO
  • Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Overview

UPC 78500785998
GTiN 00785007859980
Width 1.322 in
Size 1.322 L x .780 W x 3.281 H In
Color Red
Voltage 125 Volt
Type Receptacles
Material Nylon
Applications Commercial
Depth .780 in
Height 3.281 in
Grade Specification
Country of Origin Mexico
Wire Size 14-10 AWG
Capacity Duplex
Family Brand Name Pass & Seymour
Certifications CULUS,FEDSPEC
TC Connection Back and side wire
Duty Rating Heavy Duty
Amperage 20 Amp
Dielectric Strength Withstands 2000V minimum
Number of Poles 2 Pole
Number of Wires 3
UNSPSC 39121406
Sub Brand Pass & Seymour
