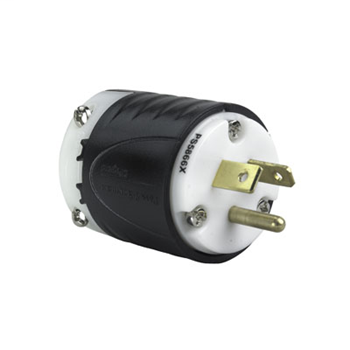

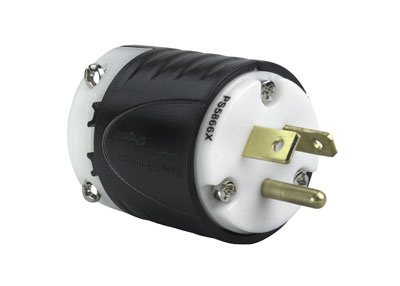

Pass & Seymour PS5866-X 20 Amp 277 VAC 2-Pole 3-Wire NEMA 7-20P Black and White Nylon Angled Polarized Straight Blade Plug
$62.32/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # PS5866X
North Coast Part # 1097377

Features

  • Unit arrives completely ready-to-wire, cuts installation time significantly.
  • Nylon housing provides impact and chemical resistance.
  • Rugged two-piece cord grip provides more uniform cord retention.
  • Internal dust shield keeps terminals free of contaminants.
  • Tri-drive assembly screws are standard on all Specification Grade plugs and connectors.
  • All 3-wire terminals located on the same plane, allows for quick wire termination from any angle.
  • Heavy-duty brass alloy blades and contacts, resist heat rise, provide excellent conductivity.
  • Cord-grip screws recessed to protect installer against screwdriver head slippage.
  • For covering patents, see www.legrand.us/patents.

Specifications

General Info

  • Color: White, Black

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Listing Info: C22.2 No.42
  • CSA Standard: Yes
  • UL Listing No: UL498
  • UL Standard: Yes
  • UN SPSC: 39121402

Dimensions

  • Depth (US): 1.752"
  • Height (US): 1.516"
  • Width (US): 1.516"

Technical Information

  • Amps: 20A
  • Volts (AC): 277
  • Grade Type: Specification

Buy American Act Compliance

  • Country Of Origin: MEXICO
  • Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Overview

UPC 78500704458
GTiN 00785007044584
Width 1.516 in
Size 3"
Color White,Black
Voltage 277 Volt
Type Straight Blade Plug
Material Nylon
Applications Commercial
Depth 1.752 in
Height 1.516 in
Grade Specification
Country of Origin Mexico
Wire Size 10-18 Awg
Family Brand Name Pass & Seymour
Certifications CULUS,FEDSPEC
Amperage 20 Amp
Number of Poles 2 Pole
Number of Wires 3
UNSPSC 39121402
Sub Brand Pass & Seymour
