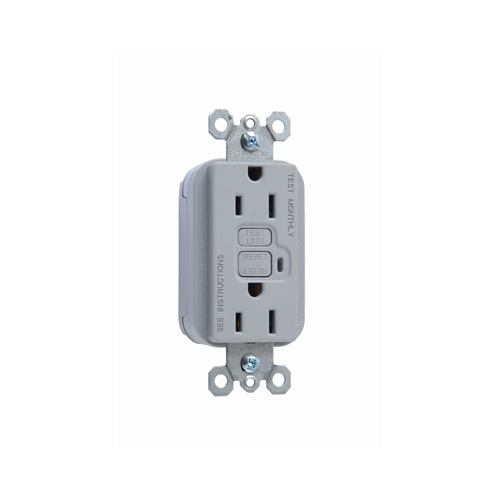

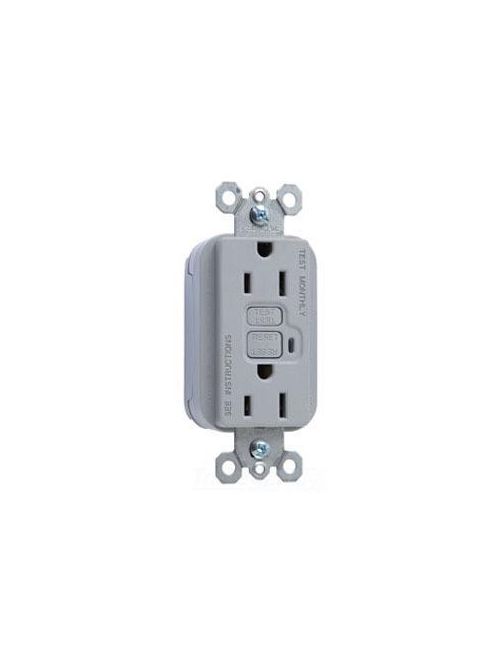

P&S PT1595-GRY 15A 120V GFCI RCPT
$27.88/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # PT1595-GRY
North Coast Part # 663820

Features & Benefits

  • High-impact-resistant thermoplastic construction.
  • Class A rated GFCI.
  • Trip indicator light (red LED).
  • Exceeds UL943 voltage surge requirements; survives 100x the required UL 3kA/6kV voltage surge test cycles.
  • Mounting screws are shipped captive in the device and wall plate for easier installation.
  • Dual-direction test and reset buttons.
  • No exposed terminals create a finger safe application before, during, and after installation.
  • SafeLock™ Protection: if critical components are damaged and ground fault protection is lost, power to receptacle is disconnected.
  • For covering patents, see www.legrand.us/patents.
  • GFCI works with the existing 3 wire PlugTail Connectors creating a non-feed-thru application for facility owners. At rough-in just install the same right angle connector for GFCI and receptacle openings.
  • Tri-drive screws.
  • Zinc-plated steel mounting strap.
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections to PlugTail Connector.
  • 10kA short circuit rating.
  • Faster, more reliable installation.
  • Button colors match the device face.
  • FSUL Listed (Federal Specification WC596).
  • Supplied with matching TP26 nylon wall plate.

Specifications

General Info

  • Type: PlugTail
  • Available Colors: White, ivory, light almond, red, black, gray
  • Style: Decorator
  • Special Features: Tamper Resistant
  • Product Series: PlugTail
  • Color: Gray

Dimensions

  • Height (U S): 4.2"
  • Width (U S): 1.72"
  • Length (U S): 4.20"
  • Depth (U S): 1.2"

Buy American Act Compliance

  • Country of Origin: CHINA
  • Buy American Act Status: No

Technical Information

  • Volts A C: 120
  • NEMA Configuration Number: 5-15R
  • Amps: 15A
  • Volts: 125V
  • Grade Type: Specification
  • NEMA Rating: Yes

Listing Agencies/Third Party Information

  • CSA Standard: C22.2 No. 42, 144
  • UN SPS C: 39121614
  • UL Standard: Yes
  • UL Listing No: UL498
  • UL Listed: Yes
  • cUL Standard: Yes
  • CUL Listing No: E42190
  • Federal Spec: Yes
  • Fed Spec Number: WC596
  • cULus: Yes

Available Options

  • PlugTail™ Spec Grade 15A Duplex GFCI, Light Almond
  • PlugTail™ Spec Grade 15A Duplex GFCI, Red
  • PlugTail™ Spec Grade 15A Duplex GFCI, Gray
  • PlugTail™ Spec Grade 15A Duplex GFCI, Ivory
  • PlugTail™ Spec Grade 15A Duplex GFCI, White
  • PlugTail™ Spec Grade 15A Duplex GFCI, Brown

Resources

Overview

UPC 78500716703
GTiN 00785007167030
Length 4.20 in
Width 1.72 in
Color Gray
Voltage 125 Volt
Type PlugTail
Product Series PlugTail
Depth 1.2 in
Height 4.2 in
Grade Specification
Style Decorator
Family Brand Name Pass & Seymour
NEMA 5-15R
Amperage 15 Amp
