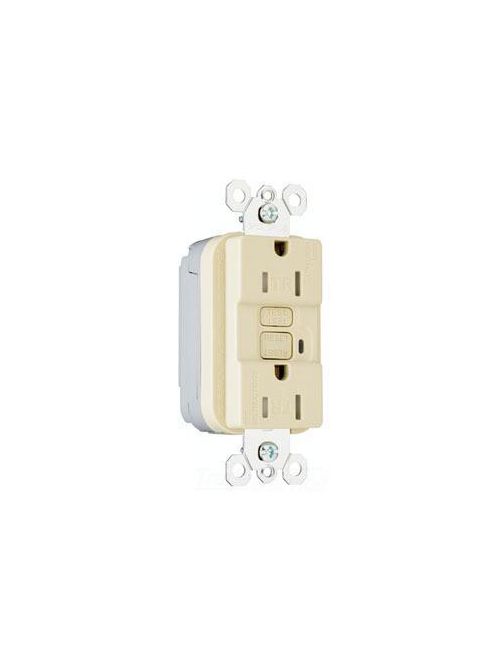

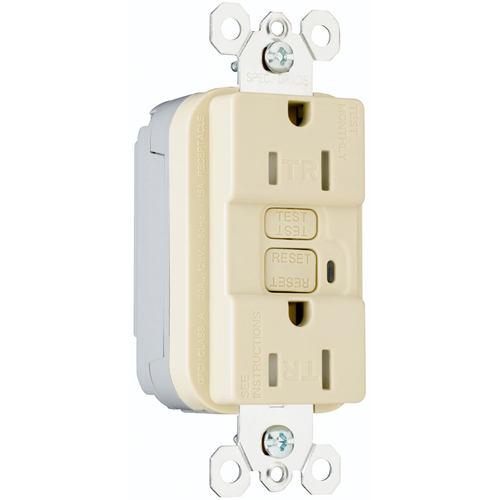

P&S PT1595-TRI 15A 125V GFCI RCPT
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$36.58/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # PT1595-TRI
North Coast Part # 885520

Features & Benefits

  • 10kA short circuit rating.
  • For covering patents, see www.legrand.us/patents.
  • Class A rated GFCI.
  • SafeLock™ Protection: if critical components are damaged and ground fault protection is lost, power to receptacle is disconnected.
  • Zinc-plated steel mounting strap.
  • FSUL Listed (Federal Specification WC596).
  • Meets 2008 National Electrical Code® Tamper-Resistant requirements.
  • No exposed terminals create a finger safe application before, during, and after installation.
  • Protects children: patented shutter system helps prevent improper insertion of foreign objects.
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections to PlugTail Connector.
  • Button colors match the device face.
  • Dual-direction test and reset buttons.
  • Exceeds UL943 voltage surge requirements; survives 100x the required UL 3kA/6kV voltage surge test cycles.
  • High-impact-resistant thermoplastic construction.
  • Faster, more reliable installation.
  • Trip indicator light (red LED).
  • Mounting screws are shipped captive in the device and wall plate for easier installation.
  • GFCI works with the existing 3 wire PlugTail Connectors creating a non-feed-thru application for facility owners. At rough-in just install the same right angle connector for GFCI and receptacle openings.
  • Tri-drive screws.
  • Supplied with matching TP26 nylon wall plate.

Specifications

General Info

  • Color: Ivory
  • Type: PlugTail
  • Available Colors: White, ivory, light almond, red, black, gray
  • Special Features: Tamper Resistant
  • Style: Decorator
  • Product Series: PlugTail

Listing Agencies/Third Party Information

  • CUL Listing No: E42190
  • Fed Spec Number: WC596
  • Federal Spec: Yes
  • UL Standard: Yes
  • CSA Standard: C22.2 No. 42, 144
  • UL Listing No: UL498
  • cULus: Yes
  • UL Listed: Yes
  • cUL Standard: Yes
  • UN SPS C: 39121614

Technical Information

  • Volts: 125V
  • NEMA Rating: Yes
  • Amps: 15A
  • NEMA Configuration Number: 5-15R
  • Grade Type: Specification
  • Volts A C: 125

Buy American Act Compliance

  • Country of Origin: CHINA
  • Buy American Act Status: No

Dimensions

  • Depth (U S): 1.2"
  • Length (U S): 4.20"
  • Width (U S): 1.72"
  • Height (U S): 4.2"

Available Options

  • PlugTail™ Spec Grade Tamper-Resistant 15A GFCI, White
  • PlugTail™ Spec Grade Tamper-Resistant 15A GFCI, Red
  • PlugTail™ Spec Grade Tamper-Resistant 15A GFCI, Brown
  • PlugTail™ Spec Grade Tamper-Resistant 15A GFCI, Black
  • PlugTail™ Spec Grade Tamper-Resistant 15A GFCI, Light Almond
  • PlugTail™ Spec Grade Tamper-Resistant 15A GFCI, Ivory
  • PlugTail™ Spec Grade Tamper-Resistant 15A GFCI, Gray

Resources

Overview

GTiN 00785007167498
Length 4.20 in
Width 1.72 in
Color Ivory
Voltage 125 Volt
Type PlugTail
Product Series PlugTail
Depth 1.2 in
Height 4.2 in
Grade Specification
Style Decorator
Family Brand Name Pass & Seymour
NEMA 5-15R
Amperage 15 Amp
Product UPC 78500716749
