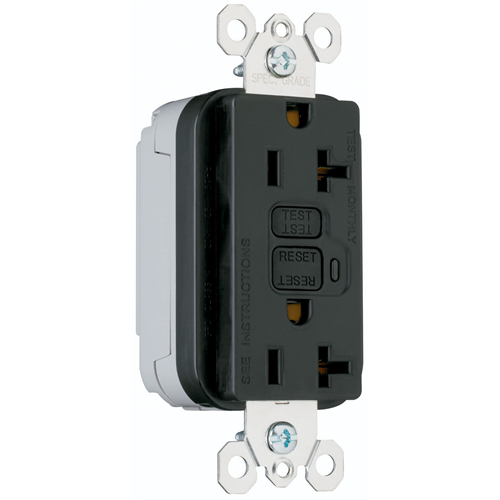

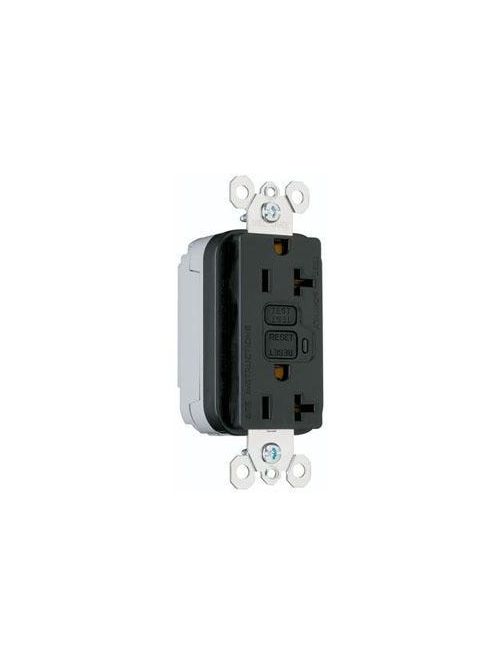

P&S PT2095-BK 20A 120V GFCI RCPT
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$32.11/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # PT2095-BK
North Coast Part # 818978

Features & Benefits

  • Dual-direction test and reset buttons.
  • Faster, more reliable installation.
  • Exceeds UL943 voltage surge requirements; survives 100x the required UL 3kA/6kV voltage surge test cycles.
  • GFCI works with the existing 3 wire PlugTail Connectors creating a non-feed-thru application for facility owners. At rough-in just install the same right angle connector for GFCI and receptacle openings.
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections to PlugTail Connector.
  • FSUL Listed (Federal Specification WC596).
  • Tri-drive screws.
  • High-impact-resistant thermoplastic construction.
  • Class A rated GFCI.
  • 10kA short circuit rating.
  • Supplied with matching TP26 nylon wall plate.
  • No exposed terminals create a finger safe application before, during, and after installation.
  • SafeLock™ Protection: if critical components are damaged and ground fault protection is lost, power to receptacle is disconnected.
  • Trip indicator light (red LED).
  • Zinc-plated steel mounting strap.
  • Button colors match the device face.
  • For covering patents, see www.legrand.us/patents.
  • Mounting screws are shipped captive in the device and wall plate for easier installation.

Specifications

General Info

  • Available Colors: White, ivory, light almond, red, brown, black, gray
  • Type: PlugTail
  • Style: Decorator
  • Product Series: PlugTail
  • Color: Black

Listing Agencies/Third Party Information

  • CSA Standard: C22.2 No. 42, 144
  • UL Listed: Yes
  • Federal Spec: Yes
  • Fed Spec Number: WC596
  • UN SPS C: 39121614
  • UL Listing No: UL498
  • CUL Listing No: E42190
  • cULus: Yes
  • UL Standard: Yes
  • cUL Standard: Yes

Technical Information

  • Grade Type: Specification
  • Volts A C: 120
  • NEMA Configuration Number: 5-20R
  • Volts: 125V
  • NEMA Rating: Yes
  • Amps: 20A

Buy American Act Compliance

  • Buy American Act Status: No
  • Country of Origin: CHINA

Dimensions

  • Width (U S): 1.72"
  • Height (U S): 4.2"
  • Depth (U S): 1.2"
  • Length (U S): 4.20"

Available Options

  • PlugTail™ Spec Grade 20A Duplex GFCI, Ivory
  • PlugTail™ Spec Grade 20A Duplex GFCI, White
  • PlugTail™ Spec Grade 20A Duplex GFCI, Light Almond
  • PlugTail™ Spec Grade 20A Duplex GFCI, Black
  • PlugTail™ Spec Grade 15A Duplex GFCI, Red
  • PlugTail™ Spec Grade 20A Duplex GFCI, Brown
  • PlugTail™ Spec Grade 20A Duplex GFCI, Gray

Resources

Overview

UPC 78500716711
Item Long Description From the innovator of the product category, comes a full range of Pass & Seymour GFCI receptacles to enhance safety, shorten installation times and increase productivity on the jobsite. Our PlugTail GFCI receptacles are the fastest-installing GFCI ever. Now you can beat tough deadlines on any commercial job.
GTiN 00785007167115
Length 4.20 in
Width 1.72 in
Color Black
Voltage 125 Volt
Type PlugTail
Product Series PlugTail
Depth 1.2 in
Height 4.2 in
Grade Specification
Style Decorator
Family Brand Name Pass & Seymour
NEMA 5-20R
Amperage 20 Amp
