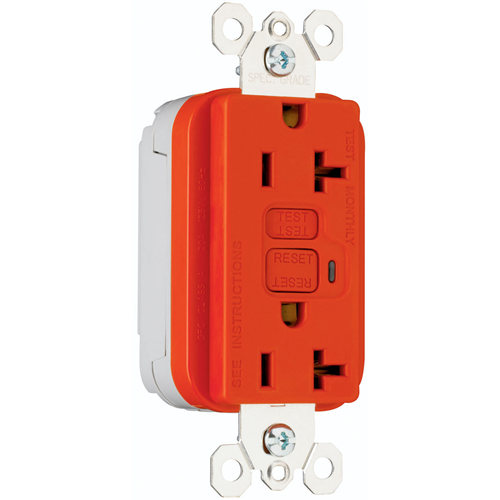

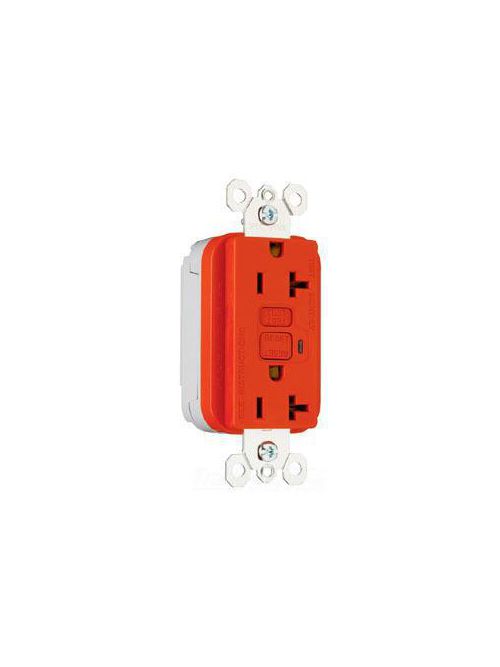

Pass & Seymour PT2095-RED 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R Red Thermoplastic Duplex GFCI Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$32.11/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # PT2095-RED
North Coast Part # 546338

Features & Benefits

  • Trip indicator light (red LED).
  • Tri-drive screws.
  • Zinc-plated steel mounting strap.
  • 10kA short circuit rating.
  • For covering patents, see www.legrand.us/patents.
  • Mounting screws are shipped captive in the device and wall plate for easier installation.
  • Supplied with matching TP26 nylon wall plate.
  • Dual-direction test and reset buttons.
  • Exceeds UL943 voltage surge requirements; survives 100x the required UL 3kA/6kV voltage surge test cycles.
  • FSUL Listed (Federal Specification WC596).
  • SafeLock™ Protection: if critical components are damaged and ground fault protection is lost, power to receptacle is disconnected.
  • GFCI works with the existing 3 wire PlugTail Connectors creating a non-feed-thru application for facility owners. At rough-in just install the same right angle connector for GFCI and receptacle openings.
  • High-impact-resistant thermoplastic construction.
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections to PlugTail Connector.
  • Class A rated GFCI.
  • Faster, more reliable installation.
  • Button colors match the device face.
  • No exposed terminals create a finger safe application before, during, and after installation.

Specifications

General Info

  • Product Series: PlugTail
  • Color: Red
  • Available Colors: White, ivory, light almond, red, brown, black, gray
  • Style: Decorator
  • Type: PlugTail

Technical Information

  • Grade Type: Specification
  • Volts A C: 120
  • Amps: 20A
  • NEMA Configuration Number: 5-20R
  • NEMA Rating: Yes
  • Volts: 125V

Listing Agencies/Third Party Information

  • UL Listed: Yes
  • CSA Standard: C22.2 No. 42, 144
  • UL Standard: Yes
  • UN SPS C: 39121614
  • Fed Spec Number: WC596
  • cUL Standard: Yes
  • Federal Spec: Yes
  • UL Listing No: UL498
  • cULus: Yes
  • CUL Listing No: E42190

Buy American Act Compliance

  • Country of Origin: CHINA
  • Buy American Act Status: No

Dimensions

  • Length (U S): 4.20"
  • Depth (U S): 1.2"
  • Height (U S): 4.2"
  • Width (U S): 1.72"

Available Options

  • PlugTail™ Spec Grade 15A Duplex GFCI, Red
  • PlugTail™ Spec Grade 20A Duplex GFCI, Ivory
  • PlugTail™ Spec Grade 20A Duplex GFCI, Black
  • PlugTail™ Spec Grade 20A Duplex GFCI, Gray
  • PlugTail™ Spec Grade 20A Duplex GFCI, Light Almond
  • PlugTail™ Spec Grade 20A Duplex GFCI, Brown
  • PlugTail™ Spec Grade 20A Duplex GFCI, White

Resources

Overview

GTiN 00785007167122
Length 4.20 in
Width 1.72 in
Color Red
Voltage 125 Volt
Type PlugTail
Product Series PlugTail
Depth 1.2 in
Height 4.2 in
Grade Specification
Style Decorator
Family Brand Name Pass & Seymour
NEMA 5-20R
Amperage 20 Amp
Product UPC 78500716712
