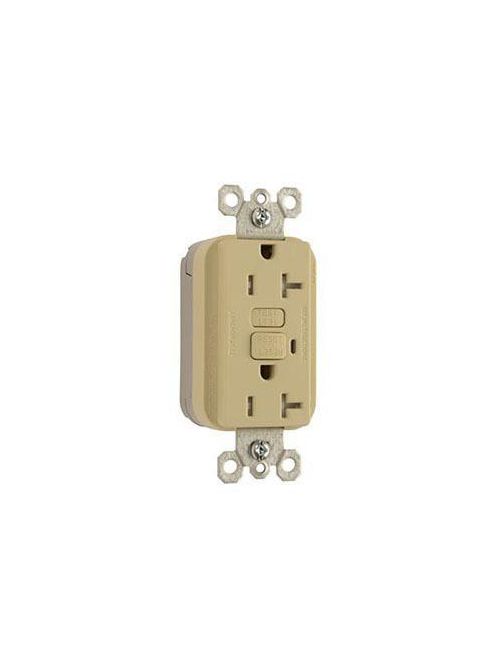

Pass & Seymour PT2095-TRI 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R Ivory Thermoplastic Tamper-Resistant Duplex GFCI Receptacle
Product image thumbnail 0
Product image thumbnail 1
$40.56/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # PT2095-TRI
North Coast Part # 546336

Features & Benefits

  • Tri-drive screws.
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections to PlugTail Connector.
  • Dual-direction test and reset buttons.
  • Trip indicator light (red LED).
  • FSUL Listed (Federal Specification WC596).
  • Faster, more reliable installation.
  • Supplied with matching TP26 nylon wall plate.
  • Exceeds UL943 voltage surge requirements; survives 100x the required UL 3kA/6kV voltage surge test cycles.
  • Button colors match the device face.
  • Class A rated GFCI.
  • Mounting screws are shipped captive in the device and wall plate for easier installation.
  • For covering patents, see www.legrand.us/patents.
  • High-impact-resistant thermoplastic construction.
  • Protects children: patented shutter system helps prevent improper insertion of foreign objects.
  • No exposed terminals create a finger safe application before, during, and after installation.
  • SafeLock™ Protection: if critical components are damaged and ground fault protection is lost, power to receptacle is disconnected.
  • Zinc-plated steel mounting strap.
  • Meets 2008 National Electrical Code® Tamper-Resistant requirements.
  • 10kA short circuit rating.
  • GFCI works with the existing 3 wire PlugTail Connectors creating a non-feed-thru application for facility owners. At rough-in just install the same right angle connector for GFCI and receptacle openings.

Specifications

General Info

  • Color: Ivory
  • Type: PlugTail
  • Product Series: PlugTail
  • Style: Decorator
  • Special Features: Tamper Resistant
  • Available Colors: White, ivory, light almond, red, brown, black, gray

Listing Agencies/Third Party Information

  • cUL Standard: Yes
  • cULus: Yes
  • UN SPS C: 39121614
  • CSA Standard: C22.2 No. 42, 144
  • UL Listed: Yes
  • UL Standard: Yes
  • Federal Spec: Yes
  • UL Listing No: UL498
  • Fed Spec Number: WC596
  • CUL Listing No: E42190

Dimensions

  • Weight: 0.3457
  • Length (U S): 4.20"
  • Depth (U S): 1.2"
  • Height (U S): 4.2"
  • Width (U S): 1.72"

Technical Information

  • Grade Type: Specification
  • Volts: 125V
  • NEMA Configuration Number: 5-20R
  • Amps: 20A
  • Volts A C: 125
  • NEMA Rating: Yes

Buy American Act Compliance

  • Country of Origin: CHINA
  • Buy American Act Status: No

Available Options

  • PlugTail™ Spec Grade Tamper-Resistant 20A Duplex GFCI, Light Almond
  • PlugTail™ Spec Grade Tamper-Resistant 20A Duplex GFCI, White
  • PlugTail™ Spec Grade Tamper-Resistant 20A Duplex GFCI, Gray
  • PlugTail™ Spec Grade Tamper-Resistant 20A Duplex GFCI, Ivory
  • PlugTail™ Spec Grade Tamper-Resistant 20A Duplex GFCI, Red
  • PlugTail™ Spec Grade Tamper-Resistant 20A Duplex GFCI, Brown
  • PlugTail™ Spec Grade Tamper-Resistant 20A Duplex GFCI, Black

Resources

Overview

UPC 78500716756
GTiN 00785007167566
Length 4.20 in
Width 1.72 in
Color Ivory
Voltage 125 Volt
Type PlugTail
Product Series PlugTail
Depth 1.2 in
Height 4.2 in
Grade Specification
Style Decorator
Family Brand Name Pass & Seymour
NEMA 5-20R
Amperage 20 Amp
