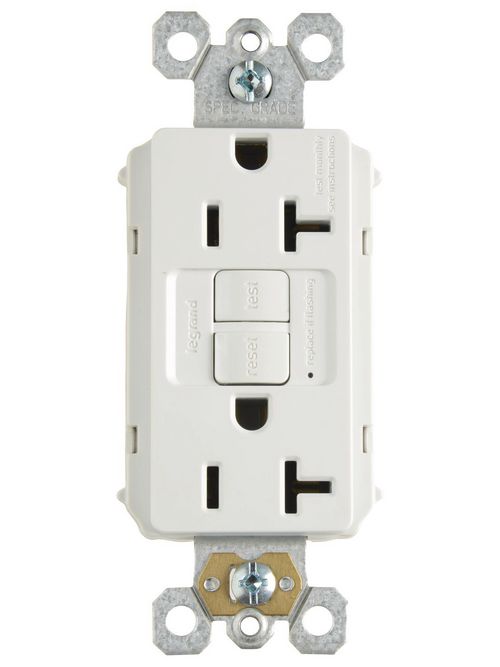

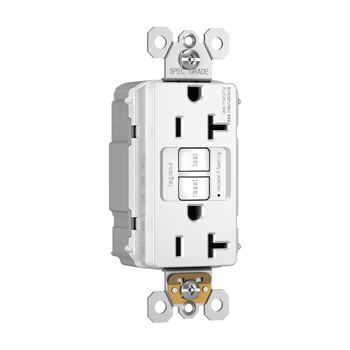

Pass & Seymour PT2097-W 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R White Nylon Self-Test Duplex GFCI Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$56.45/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # PT2097W
North Coast Part # 1163620

Features

  • Faster, more reliable installation.
  • No exposed terminals create a finger-safe application before, during, and after installation.
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections to PlugTailĀ® Connector.
  • GFCI works with existing 3-wire PlugTail Connectors creating a non-feed-thru application for facility owners.
  • Conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected.
  • Thinner than competitors' GFCI Receptacles: leaves more room for wires in the box.
  • Auto-Ground clip assures a positive ground to metal box.
  • Meets 2015 UL requirements.
  • Exceeds UL 943 voltage surge requirements; survives 100x the required UL 3kA/6kV voltage surge test cycles.
  • FSUL Listed (Federal Specification WC596).
  • Trip indicator light (red LED).
  • 10kA short circuit rating.
  • Mounting screws are shipped captive in the device and wall plate for easier installation.
  • High-impact-resistant thermoplastic construction.
  • Zinc-plated steel mounting strap.
  • Button colors match the device face.
  • Dual-direction test and reset buttons.
  • Class A rated GFCI.
  • Supplied with matching TP wall plate.
  • Tri-drive screws.
  • Supply Voltage: 125VAC, 60 Hz
  • Supply Voltage Range: 102-132 VAC
  • Trip Threshold: 5 +/- 1 mA
  • Trip Time: 0.025 sec., nominal per UL Standard

Specifications

General Info

  • Color: White

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Listed: No
  • cULus: Yes
  • Federal Spec: Yes
  • UL Standard: UL498

Dimensions

  • Depth (US): 1.20"
  • Length (US): 2.62"
  • Width (US): 1.72"

Technical Information

  • Amps: 20A
  • NEMA Configuration Number: 5-20R
  • Rating (VAC): 125
  • Volts: 125

Buy American Act Compliance

  • Country Of Origin: CHINA

Eco-Benefit Information

  • RoHS Compliant

Video

Overview

UPC 78500704864
GTiN 00785007048643
Length 2.62 in
Width 1.72 in
Color White
Operating Temperature -35C to +66C
Voltage 125 Volt
Type Self-Test, Duplex
Material Thermoplastic
Applications For Commercial, Residential use
Depth 1.20 in
Height 4.2 in
Country of Origin China
Connection Type Built-in
Temperature Rating -35 to 66 C
Family Brand Name Pass & Seymour
NEMA 5-20R
Certifications CULUS
TC Connection Built-in Connector
Actuator Control Circuit
Amperage 20 Amp
Blade Dimensions 1.03 in L x 1.73 in W x 4.2 in H
Environmental Conditions 95% Humidity
Trip Type .025 Second Nominal
Number of Poles 2 Pole
Number of Wires 3
Interrupt Rating 4 to 6 mA
Trip Range 4 to 6 mA
Sub Brand PlugTail
