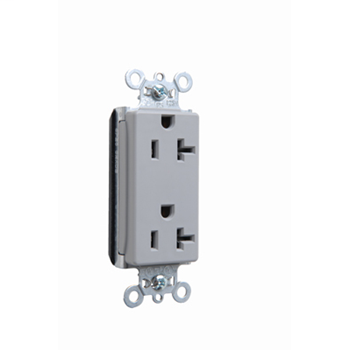

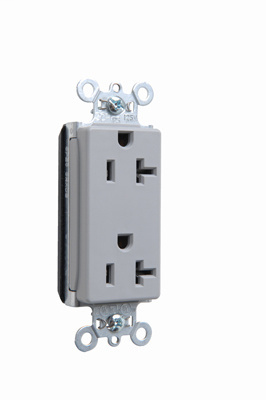

P&S PT26352GRY PT DUP DECO 20A/125V

Features

• .036 inch thick, brass, triple-wipe power contacts for lasting retention.
• Plated steel wrap strap design for maximum durability and corrosion resistance.
• No exposed terminals create a finger safe application before, during, and after installation.
• Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
• Crimped and welded contacts.
• Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
• Large brass contacts snugly terminate on device blade terminals.
• Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
• Auto-ground clip assures positive ground.
• For covering patents, see www.legrand.us/patents.
• For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

• Wire Size: PlugTail™ Connector: #12 AWG, THHN, copper conductor, 6" leads, stripped, solid or stranded, for use with PlugTail Receptacles only
• Country Of Origin: MX
• Certifications: FEDSPEC,CULUS
• Temperature Rating: Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
• Color: Gray
• Amperage: 20 A
• NEMA Rating: 5-20R
• Product Line: Pass & Seymour
• Voltage: 125.0 V
• Standard: cULus UL498
• Number of Wires: 3.0
• Application Sector: Commercial
• Number of Poles: Double Pole
• Environmental Conditions: Flammability: UL94 V2
• Dielectric Strength: Withstands 2000V minimum
• Special Features: Plated steel wrap strap design for maximum durability and corrosion resistance. .036 inch thick, brass, triple-wipe power contacts for lasting retention. Three drive screws anchor strap to back body and face. No exposed terminals create a finger safe application before, during, and after installation. Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections. Crimped and welded contacts. Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing. Large brass contacts snugly terminate on device blade terminals. Pre-stripped connector leads fasten to conductors, easier than standard pigtails. Exclusive patented feature, circuit label on back allows permanent circuit identification. Auto-ground clip assures positive ground.

Certifications

• cULus Listed
• Federal Spec Listed
