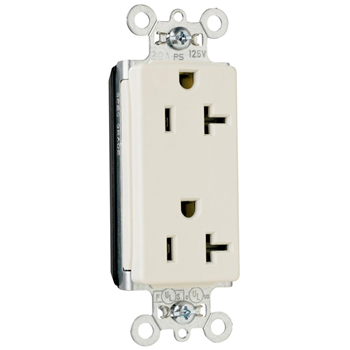

Pass & Seymour PT26352-W 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R White Nylon Face Duplex Decorator Receptacle
$11.88/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # PT26352W
North Coast Part # 931812

Features

  • .036 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Plated steel wrap strap design for maximum durability and corrosion resistance.
  • No exposed terminals create a finger safe application before, during, and after installation.
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
  • Crimped and welded contacts.
  • Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
  • Large brass contacts snugly terminate on device blade terminals.
  • Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

General Info

  • Color: White
  • Product Series: PlugTail
  • Type: Receptacles
  • Number Of Poles: 2
  • Number Of Wires: 3
  • Style: Decorator

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CUL Listing No: E140596
  • cULus: Yes
  • cUL Standard: UL498
  • Federal Spec: Yes
  • UL Listing No: E140596
  • UL Standard: UL498
  • UN SPSC: 39121406

Dimensions

  • Depth (US): .625"
  • Height (US): 3.281"
  • Width (US): 1.5"

Technical Information

  • Amps: 20A
  • NEMA Configuration Number: 5-20R
  • NEMA Rating: Yes
  • Volts: 125V
  • Volts (AC): 125
  • Capacity: Duplex
  • Grade Type: Federal Specification

Buy American Act Compliance

  • Country Of Origin: MEXICO
  • Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Video

Overview

UPC 78500730798
GTiN 00785007307986
Width 1.5 in
Size 1.5 L x .625 W x 3.281 H In
Color White
Voltage 125 Volt
Type PlugTail, Tamper-Resistant, Decorator
Material Nylon
Product Series PlugTail
Applications For Commercial Use
Depth .625 in
Height 3.281 in
Grade Specification
Country of Origin Mexico
Style Decorator
Wire Size 12 AWG
Capacity Duplex
Family Brand Name Pass & Seymour
NEMA 5-20R
Certifications CULUS,FEDSPEC
Amperage 20 Amp
Dielectric Strength 2000 V
Number of Poles 2 Pole
Number of Wires 3
UNSPSC 39121406
Sub Brand Pass & Seymour
Mounting Type Wall, Screw
Connection Type Lead
Grounding Auto
Contact Material Brass
Wire Length 6 in
Blade Dimensions 1-1/2 in L x 5/8 in W x 3.281 in H
