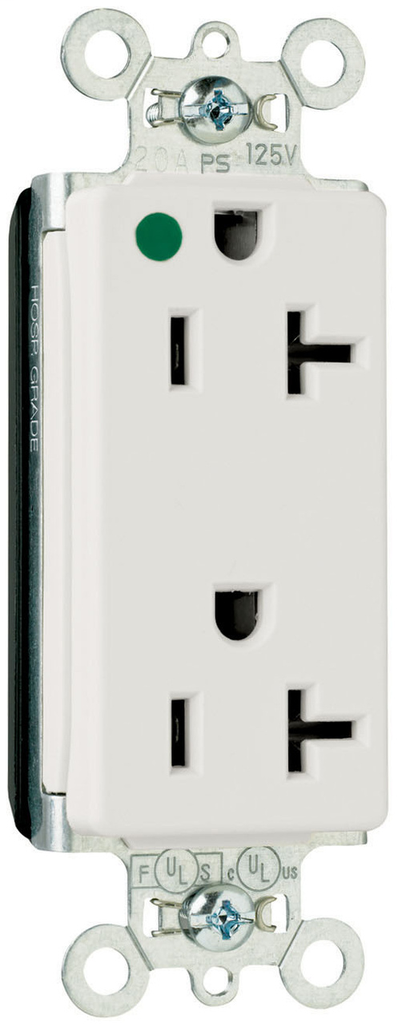

P&S PT26362HGW PT DUP DECO HG 20A/1
Product image thumbnail 0
Product image thumbnail 1
$34.73/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # PT26362HGW
North Coast Part # 931816

Features

  • .036 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Plated steel wrap strap design for maximum durability and corrosion resistance.
  • No exposed terminals create a finger safe application before, during, and after installation.
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
  • Crimped and welded contacts.
  • Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
  • Large brass contacts snugly terminate on device blade terminals.
  • Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

  • Wire Size: PlugTail™ Connector: #12 AWG, THHN, copper conductor, 6" leads, stripped, solid or stranded, for use with PlugTail Receptacles only
  • Country Of Origin: MX
  • Temperature Rating: Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
  • Certifications: FEDSPEC,CULUS
  • Amperage: 20 A
  • Color: White
  • NEMA Rating: 5-20R
  • Product Line: Pass & Seymour
  • Voltage: 125.0 V
  • Standard: cULus UL498
  • Number of Wires: 3.0
  • Application Sector: Commercial
  • Number of Poles: Double Pole
  • Environmental Conditions: Flammability: UL94 V2
  • Dielectric Strength: Withstands 2000V minimum
  • Special Features: Plated steel wrap strap design for maximum durability and corrosion resistance. .036 inch thick, brass, triple-wipe power contacts for lasting retention. Three drive screws anchor strap to back body and face. No exposed terminals create a finger safe application before, during, and after installation. Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections. Crimped and welded contacts. Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing. Large brass contacts snugly terminate on device blade terminals. Pre-stripped connector leads fasten to conductors, easier than standard pigtails. Exclusive patented feature, circuit label on back allows permanent circuit identification. Auto-ground clip assures positive ground.

Certifications

  • Federal Spec Listed
  • cULus Listed: 140596

Overview

UPC 78500730974
GTiN 00785007309744
Width 1.5 in
Size 1.5 L x .625 W x 3.281 H In
Color White
Voltage 125 Volt
Type Decorator
Material Nylon
Conductor Size 12 AWG
Product Series PlugTail
Applications Commercial
Mounting Type Wall
Depth 0.625 in
Height 3.281 in
Grade Hospital
Country of Origin Mexico
Style Decorator
Wire Size 12 AWG
Capacity Duplex
Wire Type THHN, Stripped, Solid or Stranded
Family Brand Name Pass & Seymour
NEMA 5-20R
Contact Material Copper
Amperage 20 Amp
Wire Length 6 in
Dielectric Strength 2000 V
Blade Dimensions 1.5 in L x 0.625 in W x 3.281 in H
Number of Poles 2 Pole
Number of Wires 3
Used With PlugTail Receptacles Only
UNSPSC 39121406
Sub Brand PlugTail
Certifications CULUS,FEDSPEC
