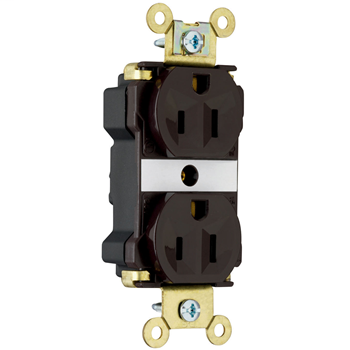

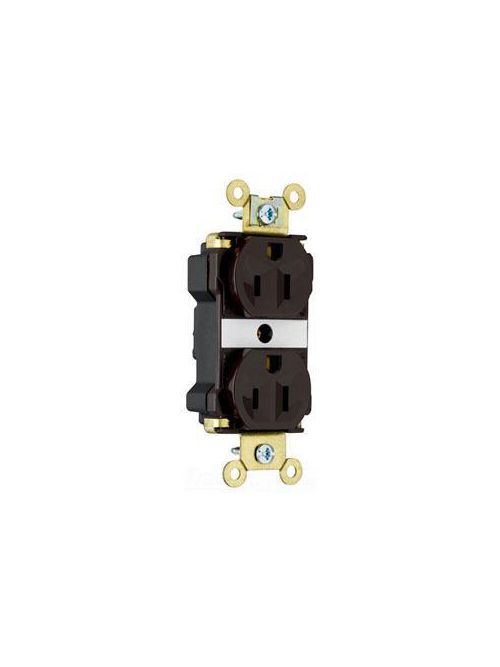

P&S PT5262-ABL 15A 5-15R DPLX RCPT
$20.99/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # PT5262-ABL
North Coast Part # 931831

Features

  • .036 inch thick, brass, triple-wipe power contacts for lasting retention.
  • No exposed terminals create a finger safe application before, during, and after installation.
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
  • Crimped and welded contacts.
  • Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
  • Large brass contacts snugly terminate on device blade terminals.
  • Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

General Info

  • Discontinued: Yes
  • Color: Blue
  • Product Series: PlugTail
  • Type: Receptacles
  • Duty: Heavy Duty

Listing Agencies/Third Party Certifications

  • CUL Listing No: E140596
  • cULus: Yes
  • cUL Standard: UL498
  • Federal Spec: Yes
  • UL Listing No: E140596
  • UL Standard: UL498
  • UN SPSC: 39121406

Dimensions

  • Depth (US): .866"
  • Height (US): 3.281"
  • Width (US): 1.625"

Technical Information

  • Amps: 15A
  • NEMA Configuration Number: 5-15R
  • NEMA Rating: Yes
  • Volts: 125V
  • Volts (AC): 125
  • Capacity: Duplex
  • Grade Type: Industrial

Buy American Act Compliance

  • Country Of Origin: MEXICO
  • Buy American Act Status: Trade Agreement Act Compliant

Video

Overview

UPC 78500786015
GTiN 00785007860153
Width 1.625 in
Color Blue
Voltage 125 Volt
Type Receptacles
Product Series PlugTail
Depth .866 in
Height 3.281 in
Grade Industrial
Country of Origin Mexico
Capacity Duplex
Family Brand Name Pass & Seymour
NEMA 5-15R
Duty Rating Heavy Duty
Amperage 15 Amp
UNSPSC 39121406
