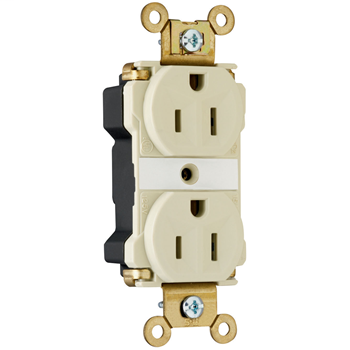

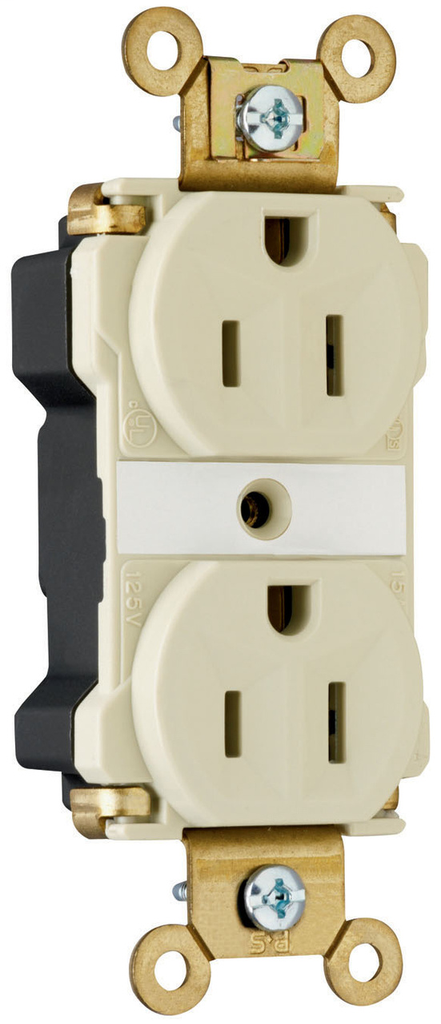

DUP RECEPT EHD 15A/125V IV
$23.58/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # PT5262AI
North Coast Part # 885534

Features

  • .036 inch thick, brass, triple-wipe power contacts for lasting retention.
  • No exposed terminals create a finger safe application before, during, and after installation.
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
  • Crimped and welded contacts.
  • Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
  • Large brass contacts snugly terminate on device blade terminals.
  • Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

General Info

  • Color: Ivory
  • Product Series: PlugTail
  • Type: Receptacles
  • Duty: Heavy Duty

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CUL Listing No: E140596
  • cULus: Yes
  • cUL Standard: UL498
  • Federal Spec: Yes
  • UL Listing No: E140596
  • UL Standard: UL498
  • UN SPSC: 39121406

Dimensions

  • Depth (US): .866"
  • Height (US): 3.281"
  • Width (US): 1.625"

Technical Information

  • Amps: 15A
  • NEMA Configuration Number: 5-15R
  • NEMA Rating: Yes
  • Volts: 125V
  • Volts (AC): 125
  • Capacity: Duplex
  • Grade Type: Industrial

Buy American Act Compliance

  • Country Of Origin: MEXICO
  • Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Video

Overview

UPC 78500786017
GTiN 00785007860177
Width 1.625 in
Size 5x2x1.43
Color Ivory
Voltage 125 Volt
Type Extra Heavy Duty
Material Thermoplastic
Conductor Size 14 - 10 AWG
Product Series PlugTail
Applications Commercial
Mounting Type Wall
Depth .866 in
Height 3.281 in
Grade Specification
Country of Origin Mexico
Wire Size 10-14 Awg
Capacity Duplex
Family Brand Name Pass & Seymour
NEMA 5-15R
Certifications FEDSPEC,CULUS
Duty Rating Heavy Duty
Amperage 15 Amp
Blade Dimensions 5 x 2 x 1.43 in
Number of Poles 2 Pole
Number of Wires 3
UNSPSC 39121406
Sub Brand PlugTail
