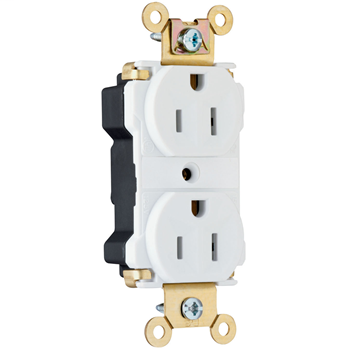

P&S PT5262AW DUP RECEPT EHD 15A/125

Features

• .036 inch thick, brass, triple-wipe power contacts for lasting retention.
• No exposed terminals create a finger safe application before, during, and after installation.
• Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
• Crimped and welded contacts.
• Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
• Large brass contacts snugly terminate on device blade terminals.
• Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
• Auto-ground clip assures positive ground.
• For covering patents, see www.legrand.us/patents.
• For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

General Info

• Color: White
• Product Series: PlugTail
• Type: Receptacles
• Duty: Heavy Duty

Listing Agencies/Third Party Certifications

• RoHS: Yes
• CUL Listing No: E140596
• cULus: Yes
• cUL Standard: UL498
• Federal Spec: Yes
• UL Listing No: E140596
• UL Standard: UL498
• UN SPSC: 39121406

Dimensions

• Depth (US): .866"
• Height (US): 3.281"
• Width (US): 1.625"

Technical Information

• Amps: 15A
• NEMA Configuration Number: 5-15R
• NEMA Rating: Yes
• Volts: 125V
• Volts (AC): 125
• Capacity: Duplex
• Grade Type: Industrial

Buy American Act Compliance

• Country Of Origin: MEXICO
• Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

• RoHS Compliant
