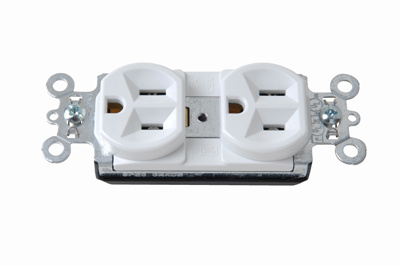

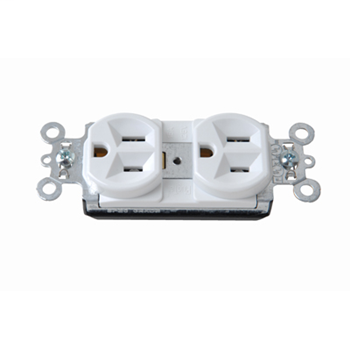

Pass & Seymour PT5262W 15 Amp 125 Volt White PlugTail Spec Grade Receptacles
Product image thumbnail 0
Product image thumbnail 1
$8.56/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # PT5262W
North Coast Part # 330738

Features

  • .036 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Plated steel wrap strap design for maximum durability and corrosion resistance.
  • No exposed terminals create a finger safe application before, during, and after installation.
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
  • Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
  • Crimped and welded contacts.
  • Large brass contacts snugly terminate on device blade terminals.
  • Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

  • Wire Size: PlugTail™ Connector: #12 AWG, THHN, copper conductor, 6" leads, stripped, solid or stranded, for use with PlugTail Receptacles only
  • Country Of Origin: MX
  • Certifications: FEDSPEC,CULUS
  • Temperature Rating: Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
  • Color: White
  • Amperage: 15 A
  • NEMA Rating: 5-15R
  • Product Line: Pass & Seymour
  • Voltage: 125.0 V
  • Standard: cULus UL498
  • Number of Wires: 3.0
  • Application Sector: Commercial
  • Number of Poles: Double Pole
  • Environmental Conditions: Flammability: UL94 V2
  • Dielectric Strength: Withstands 2000V minimum
  • Special Features: Plated steel wrap strap design for maximum durability and corrosion resistance. .036 inch thick, brass, triple-wipe power contacts for lasting retention. Three drive screws anchor strap to back body and face. No exposed terminals create a finger safe application before, during, and after installation. Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections. Crimped and welded contacts. Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing. Large brass contacts snugly terminate on device blade terminals. Pre-stripped connector leads fasten to conductors, easier than standard pigtails. Exclusive patented feature, circuit label on back allows permanent circuit identification. Auto-ground clip assures positive ground.

Certifications

  • cULus Listed
  • Federal Spec Listed

Overview

UPC 78500709164
Item Long Description PlugTail Spec Grade Duplex Receptacle 15 A 125 V Light AlmondFor detailed PlugTail information, visit our PlugTail Headquarters.
GTiN 00785007091649
Width 1.5 in
Size 1.5 L x .625 W x 3.281 H In
Color White
Voltage 125 Volt
Type Receptacles
Material Nylon
Product Series PlugTail
Applications Commercial
Depth .625 in
Height 3.281 in
Grade Federal Specification
Country of Origin Mexico
Wire Size 12 AWG
Capacity Duplex
Family Brand Name Pass & Seymour
NEMA 5-15R
Certifications CULUS,FEDSPEC
Amperage 15 Amp
Dielectric Strength Withstands 2000V minimum
Number of Poles 2 Pole
Number of Wires 3.0
UNSPSC 39121406
Sub Brand Pass & Seymour
